Possible settings for editing

I. Specifications in the Stitch Length Table:

  1. Different colored entries for stitch lengths are entered in one pattern row in the design pattern.
    1
    In the Home ribbon under Parameter open the Pattern Parameters tool window and select the Stitch Length section.

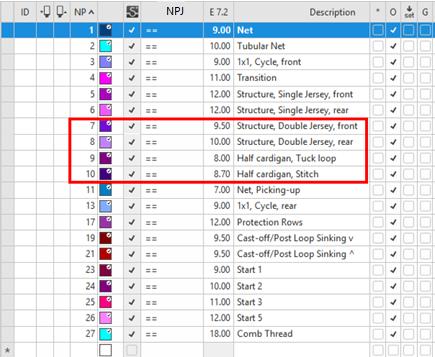

  1. The Stitch Length (NP) tool window appears.
    3. 2
    Make the desired setting in the NPJ column:

!

Protect the stitch tension area against a stitch length change

Extra Row

Pattern row with different stitch lengths is divided, i.e. for each stitch length in one carriage stroke there will be entered a movement of the yarn carrier in the pattern.

Result: Longer run time based on the moving of the yarn carrier (kick back).

==

Carry out the stitch tension change evenly in both areas

    3
    Make the desired changes in the other columns for example E7.2, description, etc.
    4
    Close the tool window.

II. Further Settings in Setup Data and Configuration:

Carry out presets in Setup data for Flexible Stitch (MSECNPJ):

    1
    Open Start ribbon -> Pattern Parameters tool window -> Speed.
    2
    Select the Behavior (MSECn) tab.
    3
    In the With Flexible Stitch (MSECNPJ) section carry out presets for working with PTS (NPJ):
    4
    Enter the desired carriage speed for working with PTS (NPJ) under Value.
    5
    Close the tool window.

Make specifications for the Jacquard symbols while working with NPJ:

: The allocation of stitch length values for both Jacquard symbols depends on the machine generation.

    1
    Open Start ribbon -> Config­uration group -> Configuration tool window.
    2
    Select the More Settings tab.
    3
    In the Variable stitch length section under NPJ enter the desired value for the ‘.‘ = and N = Jacquard symbols.
    4
    Close the tool window.
