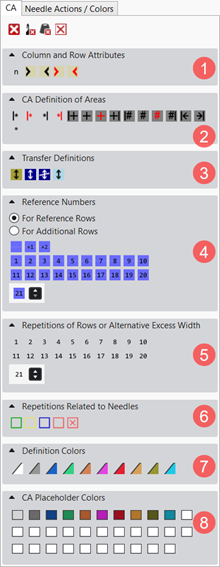

Tools in the Color Arrangement Editor

1

Column and Row Attributes

Referring column

Marking of the column for the reference numbers

Column of vertical repeating

For creating repetitions in the height (cycles)

Left Shape Area Column

Fabric selvedge in the right of the fabric piece center

: Corresponds to #RM counter.

Right Shape Area Column

Fabric selvedge in the fabric piece center left

: Corresponds to #LM counter.

Left Fabric Piece Column

Left outer edge of a fabric piece.

: Corresponds to #L counter.

Right Fabric Piece Column

Right outer edge of a fabric piece.

: Corresponds to #R counter.

2

CA Definition of Areas

Repeating from the left pattern column

Repeat the selected column area within the color relative to the first pattern column.

Repetition to the right

Repeat the selected column area starting from the left color field edge.

Repeating from the right pattern column

Repeat the selected column area within the color relative to the last pattern column.

Repetition to the left

Repeat the selected column area starting from the right color field edge.

Excess Width, Overwriting, Repeating starting at the left pattern border

Enter a overwriting additional column on the left relative to the first pattern column of a color area.

Excess Width, Overwriting

Enter an overwriting additional column on the left and / or right of a color area.

Excess Width

Do not enter an overwriting additional column on the left and / or right of a color area.

Excess Width, Overwriting, Repeating starting at the right pattern border

Enter a overwriting additional column on the right relative to the last pattern column of a color area.

Effect:
The color area will be widened up to shape edge at max.

Example: Intarsia Binding

Excess Width at Shape Edge, Overwriting, Repeating starting at the left pattern border

Enter a overwriting additional column on the left relative to the first pattern column of a color area at the shape edge.

Excess Width at Shape Edge, Overwriting

Enter an overwriting additional column on the left and / or right of a color area at the shape edge.

Excess width at Shape Edge

Do not enter an overwriting additional column on the left and / or right of a color area at the shape edge.

Excess Width at Shape Edge, Overwriting, Repeating starting at the right pattern border

Enter a overwriting additional column on the right relative to the last pattern column of a color area at the shape edge.

Effect:
The color area will be widened by the indicated column number beyond the shape edge.
Here, Outside shape is set to Within shape.

: Shape edges will not be moved, attributes will be widened.

Left Fabric Selvedge

Fading-out at the left fabric selvedge by the drawn-in width .

Right Fabric Selvedge

Fading-out at the right fabric selvedge by the drawn-in width.

Repeating of rows

For defining cycles in the column

: If there are to be defined several cycles in the CA, the repeating of rows can be marked visually also with defining colors. For neighboring cycles a defining color is mandatory as it defines the start and the end of the cycle.

Outside shape in the searching row

For defining specifications in the needle bed in the area at the left of the #L counter and in the area at the right of the #R counter, also for specifying outside shape.

• Comb Thread Example

3

Transfer Definitions

Settings for Transferring the Shape

Specify the pattern rows for transferring the narrowings and widenings

Settings for Transferring the Structure

Specify the pattern rows for transferring the structures.
preferred or delayed

Do not allow structure transferring

Specify the pattern row in which the transferring of the structure is not allowed

Settings for Auto Transferring

Specify the pattern rows for auto transferring

4

Reference Numbers

For Reference Rows

Keep reference row number

The previous reference row number is retained, i. e. that the reference row number will not be incremented.

Increase reference row number by 1

Edited reference row number will be increased by 1 for further editing.

: In the first row of the CA, the '+' symbol will not be executed, i.e. it corresponds to an entry of

Increase reference row number by 2

Edited reference row number will be increased by 2 for further editing, i.e. one pattern row is skipped.

to

Reference Row Number from 1 to 20

Selection of the reference row numbers for numbering the reference rows in the design pattern

Selection of further reference row numbers greater than 20

For Additional Rows

Retain the number of additional row

The previous reference row number is retained, i. e. that the reference row number will not be incremented.

Increase the number of additional row by 1

Edited reference row number will be increased by 1 for further editing.

Increase the number of additional row by 2

Edited reference row number will be increased by 2 for further editing, i.e. one pattern row is skipped.

to

Number of additional row from 1 to 20

Selection of the additional row number for numbering the additional rows in the Color Arrangement

Selection of further reference additional row numbers greater than 20

5

Repetitions of Rows or Alternativ Processing

to

Repeating of rows or excess width 1 to 20

Numbers for defining

• Repetition factor with repeating of rows
• Definition of the alternative excess width

Repeating of rows or excess width 21 and higher

6

Repetitions Related to Needles

Start of Repetition

Select areas and define them according to the type of knitting element.

• Binding-off by CA
• Repetitions in a module

First Repetition

Following Repetition

Delete Needle Occupancy Delete Repetition Delete Knitting-in and Out

Delete the marked areas

7

Definition Colors

to

For visual marking of

• Connecting points
• Repeating of rows (cycles)
• Jacquard colors in the Jacquard module type of knitting element
