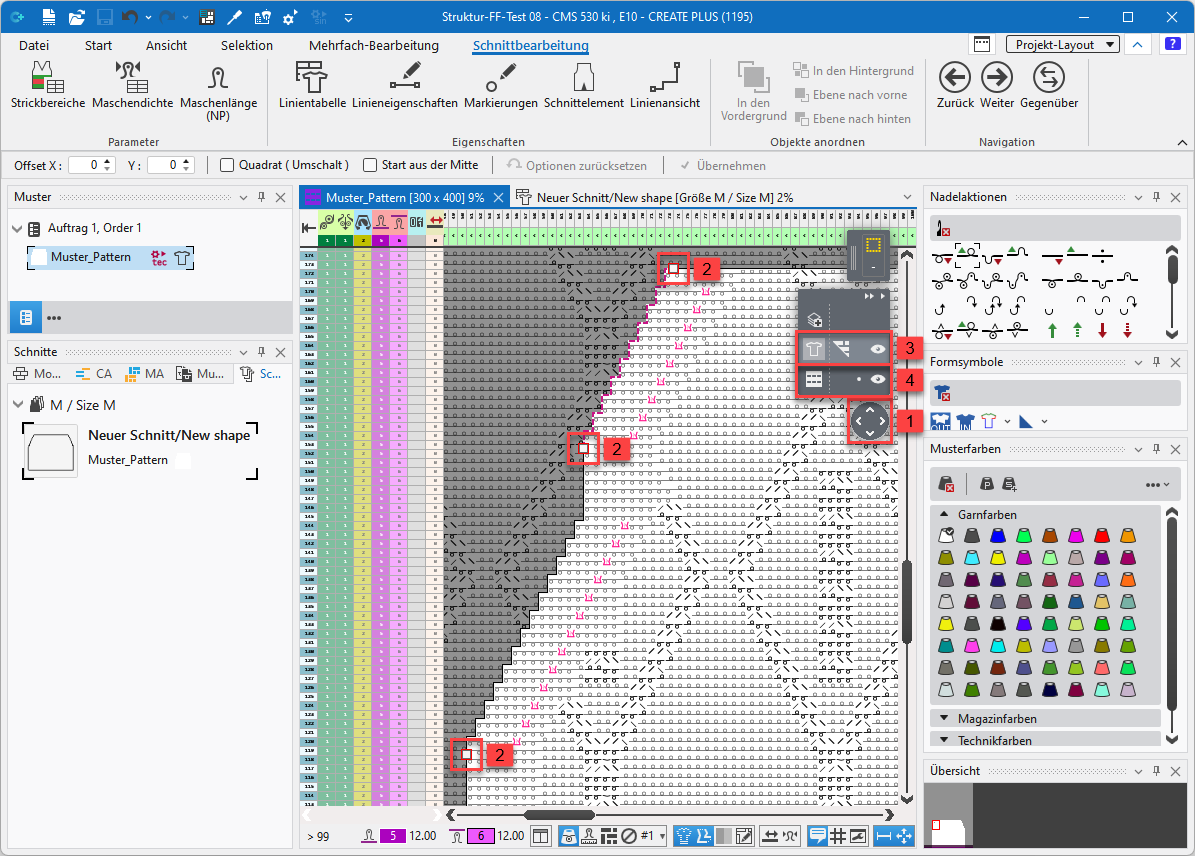

Options for creating / editing a lined shape in the pattern project

: Only possible if the lined shape is positioned in the Design pattern.

1

Move Shape (Ctrl = by steps of ten)

The shape positioned in the Design pattern can be moved

  • Individual steps
  • By steps of ten

2

Shape Points

You can move shape points with the cursor keys of the keyboard if Edit Lined Shape Layer (Y) is selected.

Layer control to toggle between Edit Pattern Layer or Edit Lined Shape Layer (Y)

3

Upper Line

Shape Layer:
Edit Lined Shape

Toggle exceeding knitting elements

4

Lower Line

Design Layer:
Working in Design Pattern

: No modifications within the shape.

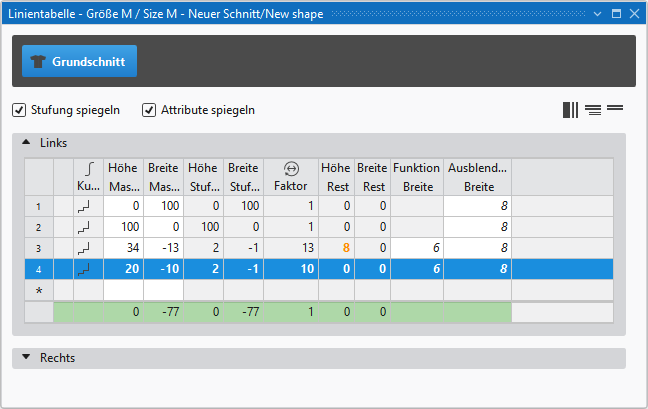

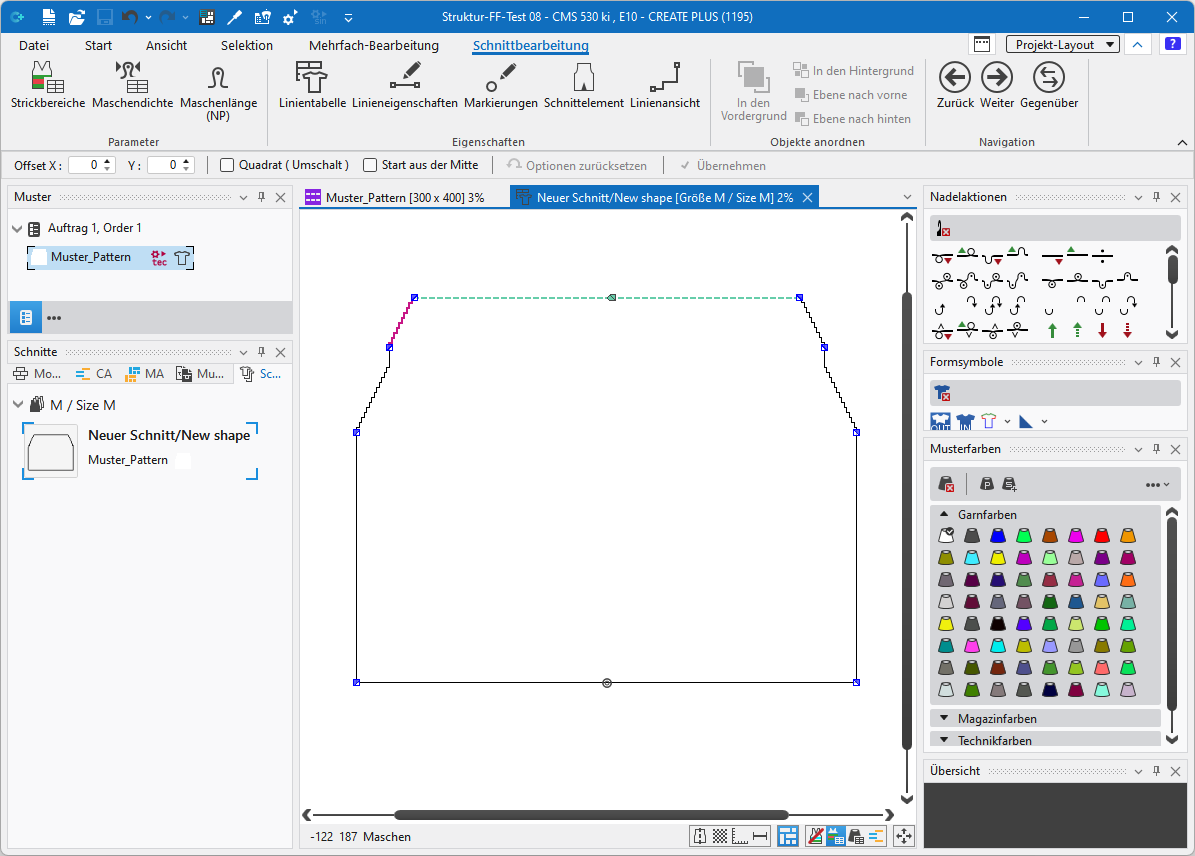

For creating a lined shape, you can move freely between the three options whereby all the data is always updated.
