Shape Element Properties and Functions in Context Menu of Shape Elements

Duplicate
Copy
Flip Horizontally
Flip Vertically
Lock
Delete
Shape Element Properties

Procedure:

1: Select the desired shape element.

2: Call-up the context menu of the shape element.

3: Call up the desired menu item.

The selected function will be executed.
The Shape Element Propertiescontext menu opens the Shape Element Properties tool window.

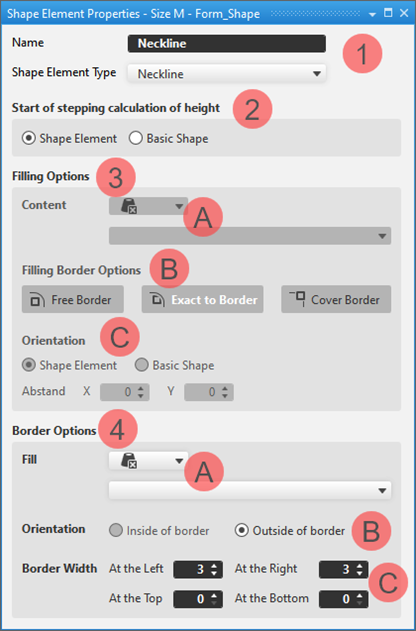

Shape Element Properties


1	Name		The name of the shape element is as desired
	Shape Element Type		Characteristics of the shape element for processing it within the shape: Neckline Outside Shape Filled Neckline Within shape with allocation of narrowing modules Gore Within shape for not knitting with the symbol Hole Outside Shape Dart Within shape with symbols for processing with narrowing / widening modules Within Shape Allocation of knitting elements, pattern elements or an image : The shape element type can be changed via the picklist.
2	Start of stepping calculation of height
	Shape Element		The startpoint of stepping calculation based on the selected stepping kind is the startpoint of the shape element.
	Basic Shape		The startpoint of stepping calculation based on the selected stepping kind is the startpoint of the basic shape (baseline).
3	Filling Options
	A	Content	Allocation of a filling color and / or of a knitting element
	B	Filling Border Options	Free Border Exact to Border Cover Border
	C	Orientation
		Shape Element	In the shape element, starting at the reference point of the shape element (bottom left corner of the shape element) a grid is structured with the size of the knitting element. Then, the knitting element is filled with the preset for border filling options.
		Basic Shape	In the shape element, starting at the reference point of the basic shape (bottom left corner of the basic shape) a grid is structured with the size of the knitting element. Then, the knitting element is filled with the preset for border filling options.
		Distance X:/ Y	Horizontal and / or vertical shifting of the reference point in the shape element or in the basic shape.
4	Border Options
	A	Content Fill	Allocation of a filling color and / or of a needle action : Allocation of a knitting element larger than 1x1 is not possible.
	B	Orientation	Entry of a border inward or outward according to the shape element type
	C	Border Width	Preset of the border width in pixel for the four shape element edges
