Creating the shape as lined shape in the pattern project

Open the Shapes tool window:

    1
    In the Home ribbon under Tool Windows, select the Shapes tool window.
  1. In the tool window, the existing shapes of the pattern project are displayed.
    2. 2
    Place the cursor in the tool window and open the context menu.
    3
    Select Create New Shape of Size M... in the context menu.
  2. The New Lined Shape dialog box will appear.
    3. 4
    Select the desired input format.
    5
    Confirm with the OK key.
  3. The new lined shape (basic shape) is graphically displayed in the Shapes tool window and in a new document window New shape xx [size x] as rectangle.
    : The default attributes will be used for the shape edges of the lined shape.
    4. 6
    For creating a lined shape based on the displayed rectangle click the Properties button in the ribbon under Line Table.
    - or -
    Use the graphic displayed in the document window.
    7
    Create the desired shape lines for multi-step widening.
    8
    Allocate the desired shape line attributes to the shape line.

: You may use the method you prefer as both views are always adjusted to each other.

Basic Shape:

    9

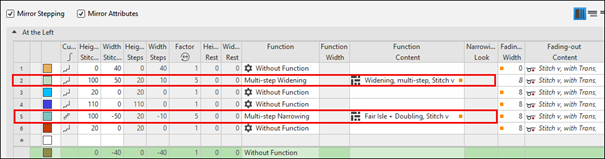

    Allocate Multi-step Widening to shape line no. 2 under Function.
    10
    Select the desired module under Function Content:
    11
    Allocate it to shape line no. 5 under Function.
    12
    Select the desired module under Function Content:
    13

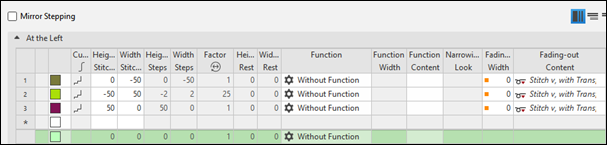

    Create shape elements for the four gore areas.

Gore left bottom

Gore left top

Gore right bottom

Gore right top

Gore left bottom

Gore left top

Gore right bottom

Gore right top

    14
    Link the Gore shape element to shape line points.
