Create New Pattern Project with One Pattern

Create a New Pattern Project:

1: Start the program double-clicking .
- or -
If the program is already running, open the File → New tab via the ribbon.

2: Create a New Pattern Project by clicking on Pattern Project.

CREATE PLUS gets started and the New Pattern Project dialog box appears.

3: Make the required settings in the Project sector:

Enter a project under Name.
Change machine type and gauge via the Change Machine button if necessary.

4: Select the desired knitting mode in the Knitting Technique sector.

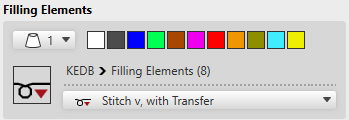

5: Make the required settings in the Filling Elements sector:

6: Enter the desired size of the design pattern in the Dimension sector by width and height.
: Due to the structure within the design pattern, set the height and width according to the size of the shape.

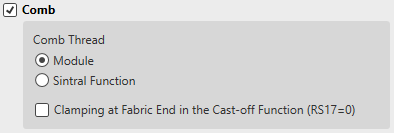

7: Make the desired settings in the Comb sector.

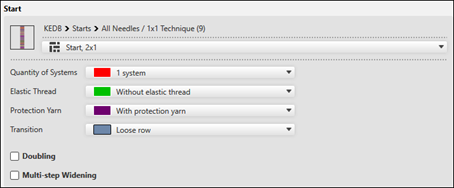

8: Make the desired settings in the Start sector.

9: Confirm the dialog box with the OK button.

The new Pattern Project with one pattern appears in the symbol view of the main window.
