Example 01: Excess Width and Excess Width, Overwriting

Opening pattern projects of former releases prior to V 2.x.x:

The symbols , will be automatically converted to and when opening.

: New icons with the behavior of the former icons.

Generate Color Arrangement:

  1. Design Pattern with the necessary colors is created.
    1
    Select the desired rows in the Row control column.
    2
    Position the cursor in the pattern area.
    3
    Open the context menu with RMB.
    4
    Select Selection / Create Color Arrangement:
  1. The Color Arrangement Editor will be opened.
    2. 5
    Insert the desired quantity of columns or rows for the widening at the left or right.
    6
    Make the desired entries with the tools for Color Arrangement from the CA and Needle Actions / Colors tabs.

Behavior with intarsia knitting process

Behavior of the symbol (= Excess Width )

  • M1plus
  • CREATE PLUS with versions before V 2.x.x

CA1_A

Result:

Behavior of the new symbol (= Excess Width )

  • CREATE PLUS starting with version V 2.x.x

: Color Arrangements created with former versions will automatically be converted.

CA1_B

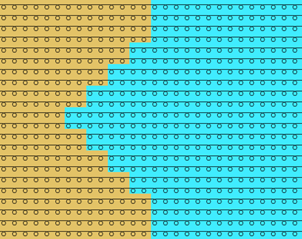

Result:

Behavior with yarn carriers that knit using two or more search colors

New behavior of the symbol (= Excess Width, overwriting)

  • CREATE PLUS starting with version V 2.x.x

CA2_A

Result:

New behavior of the new symbol (= Excess Width )

CA2_B

Result:
: If the icon is used with this knitting process, then it will have no affect. Information of the columns with will be applied to the needle action ‚Not‘ only.

    7
    Check the generated Color Arrangement regarding its correctness with the Check button.
    8
    Then apply the changes with the Apply button.
  1. Color Arrangement is saved locally in the CA tool window.
    2. 9
    Enter the generated Color Arrangement in the desired rows in the design pattern.
  1. The Color Arrangement is expanded by the technical processing.
