W Machine - Weft Yarn Carrier Qw
The yarn carrier plunger (A) is activated outside of the yarn carrier carriage and pushes the yarn carrier.
The weft yarn carrier is named "Qw".
Advantage:
- No additional system is required for the weft yarn.
- One system only inserts the weft yarn and encloses it.
- The additional system, necessary up to now, can be used for another needle action (enhanced productivity).
|
Working without Qw |
The weft yarn is inserted by the separate system (S1).
|
|
Working with Qw |
One system only inserts the weft yarn and encloses it (S2). System S1 can be used for another needle action.
|
The yarn carriers must be on different tracks.Notes:
- Height of the Qw yarn carrier = Height of a normal yarn carrier

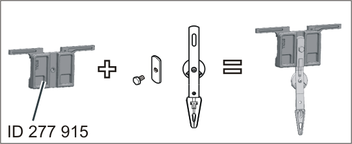

- Yarn carrier carriage Qw (ID 277 915)
