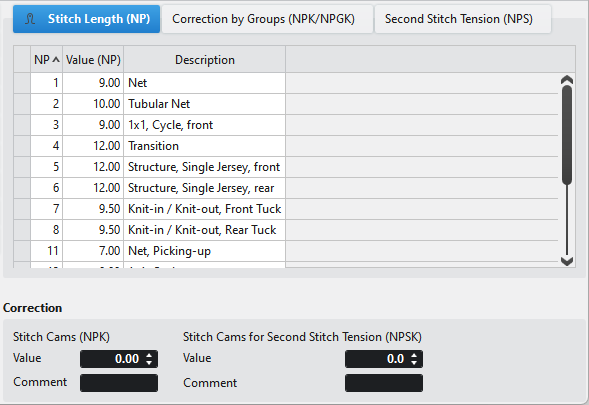

Stitch Length (NP)

NP

Index

Value (NP) / Value (mm)

Stitch cam position depending on the gauge (stitch length)

Specification in NP values:

Value range: 6.00 to 22.50
Step width: 0.05

Settings in millimeters:

Value range: 0.00 to 17.60 mm
Step width: 0.05 mm

Description

Note on the use of the entry. You can enter a text here.

Correction

Stitch Cams (NPK)

Value

Enter value by which all stitch cams are to be corrected.
Value range: -2.00 to 2.00
Step width: 0.05

With stitch lengths specifications in NP values as well as in millimeters (mm).

Comment

Enter a comment about the NPK value.

In case of machines with second stitch tension the same edit boxes appear also for the second stitch tension.

Stitch Cams for Second Stitch Tension (NPSK)

Value

Enter value by which all stitch cams are to be corrected.
Value range: -2.00 to 2.00
Step width: 0.05

With stitch lengths specifications in NP values as well as in millimeters (mm).

Comment

Enter a comment about the NPSK value.
