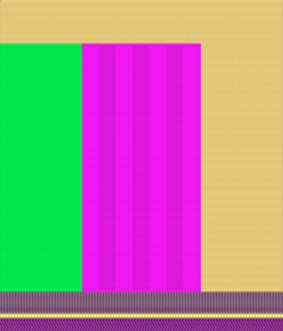

Pattern 15: CA for a Structure with Additional Yarn Carrier

Machine

  • As desired
    • Example for CMS 530 HP, E3,5.2 (classification 656)
  • Knitting Technique
    • All Needles
  • Filling Elements
    • Any yarn color
    • Front Stitch with Transfer
  • Start
    • Start, 1x1 :
    • 1 system
    • Without elastic thread
    • With Protection Thread
    • Loose row

Pattern Project

Pattern-15.spf

Lined Shape Project

Without shape
  • Color Arrangement for
    • Structure with Additional Yarn Carrier
  1. Create a pattern project with one pattern.
  2. Draw color areas into the basic pattern.
  3. Generate Color Arrangement.
  4. Adjust the specifications of color parameters.
  5. Start the Technical Processing.
  6. Generate knitting program (Sintral, Jacquard, Setup).
  7. Run the Sintral Check.
  8. Load and set up the knitting program on the machine.
