How the weft yarn presser foot works

Usage of weft yarn presser foot

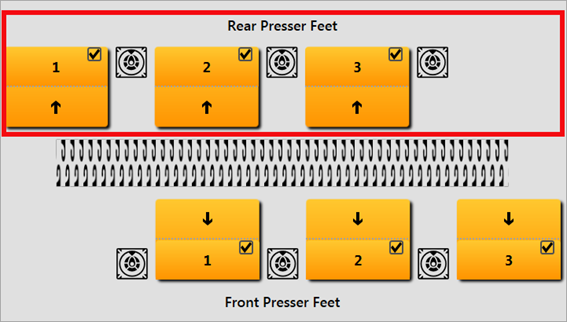

Knitting direction to the left

  • Red arrow
    = presser foot unit inactive
  • Orange arrow
    = presser foot unit active
  • Within the carriage stroke to the left the presser foot works as weft yarn presser on the rear.
  • The weft yarn presser foot are ahead of the knitting system active.
  • Front presser foot units are inactive.

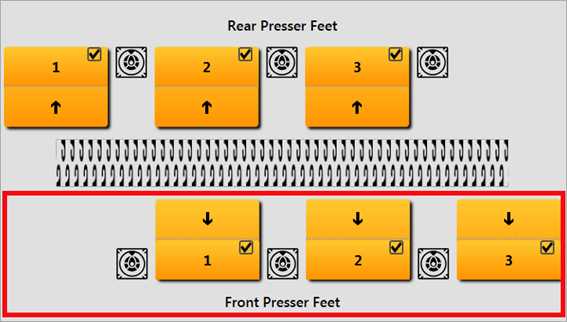

Knitting direction to right

  • Within the carriage stroke to the right the presser foot works as weft yarn presser on the front.
  • The weft yarn presser foot are ahead of the knitting system active.
  • Rear presser feet are inactive.
