Creating and Editing a Yarn

You can set information and properties of yarn types individually and optionally.

Information does not affect the yarn structure.
Poperties of the yarn type always determine the visual appearance of the yarn.

Optional yarn information:

Nombre
Fabricante
Proveedor
Comentario
Grosor del hilo

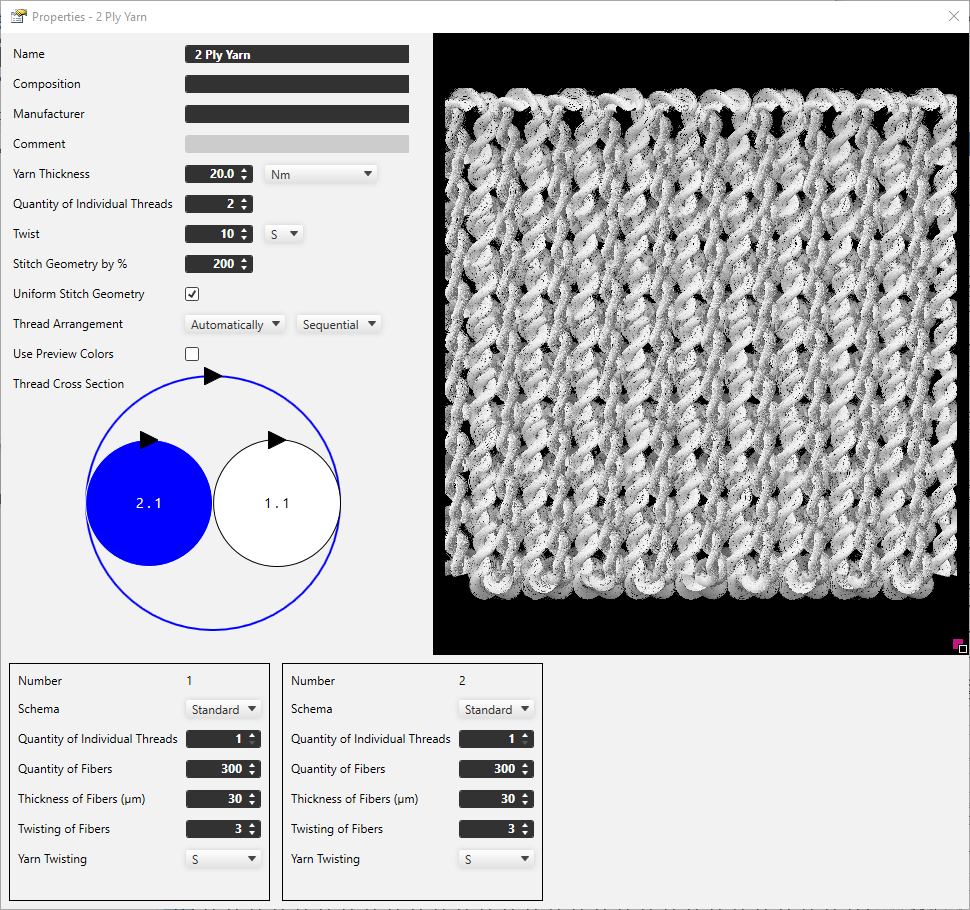

Yarn properties:

Cantidad de hilos únicos	The quantity of individual threads indicates of how many individual threads the yarn type is composed. Depending on the quantity, new individual threads appear at the left side of the dialog window with further parameters. The maximum value of the plying is 20.
Torsión	The twist specifies how strongly the individual threads are twisted with each other. The maximum value of the twist is 200. Additionally, the S and Z twist of the yarn type can be specified.
Geometría de mallas en %	By the setting of the stitch geometry, the thickness of the stitch loop, the stitch legs and of the stitch feet can be influenced. The maximum value is 300. If Geometría de mallas uniforme is activated, the geometry of the yarn type is changed evenly.
Colocación de hilo	The type of yarn arrangement influences whether the individual threads twist or not. This can be set to automatically by the system or manually by the user. With the manual setting, the user can move every yarn by its cross-section to any preferred position.
Utilizar colores de vista previa	The preview colors simplify the creation of a yarn type, as individual threads are displayed in different preview colors. This is especially useful for Mouliné or melange effects. But the preview colors have no effect on the actual color of the digital yarn.
Sección transversal del hilo	The cross-section shows the current position of each single yarn that was defined by the quantity of the individual threads. With the manual setting, you can move the threads manually to the desired arrangement.
Esquema	The schema defines the basic appearance of a yarn type. Currently the user can choose between Estándar and Cable.
Cantidad de hilos únicos	The user can define several sub-threads for each individual yarn. The maximum quantity of sub-threads is 50.
Cantidad de fibras (mm)	The quantity of fibres is an optical value to define the quantity of the fibres of each thread. The maximum value is 800.
Espesor de fibras (mm)	The thickness of the fibres is expressed in micrometers. The maximum value is 100 micrometers.
Torsión de fibras	The twisting of the fibres shows, how the fibres and sub-threads are twisted together. The maximum value is 100.
Torsión de torzal	For information, the user can add whether it is about an S or a Z twisted yarn type.

Cantidad de hilos únicos :
