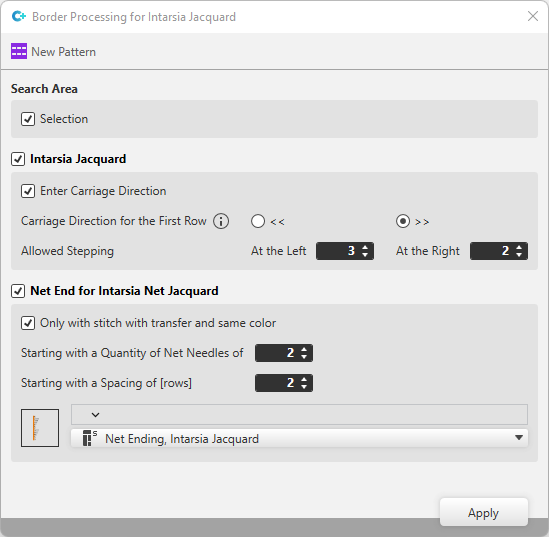

Border Processing for Intarsia Jacquard

Sector de búsqueda

Specify search area in which the settings should be effective.

Selección: In the selected area

Jacquard en Intarsia

Make settings for the Intarsia-Jacquard.

Entrar dirección de carro

The defined carriage direction is entered into the pattern while applying.

Dirección de carro de la primera pasada

Select the carriage direction for the first row of the Intarsia-Jacquard.

The carriage direction only has an effect on the rows for which no carriage direction is set within the control column.

<< Carriage moves towards left.

>> Carriage moves towards right

Escalonamiento permitido

Enter the allowed stepping for left and right in the Intarsia pattern.

Izquierda

a la dcha.

Fin de la red para intarsia con Jacquard de red

Make settings for the Net end by Intarsia Net Jacquard.

Solo para malla con transferencia y mismo color

The module is only inserted with stitch with transfer and same color.

A partir de un número de agujas de red de

Enter the minimum number of net needles, after which the modules are inserted.

A partir de un espacio intermedio de [pasadas]

Enter the minimum number of rows, that may be in the intermediate spacing, after which the modules are inserted.

Select module for the net ending.
