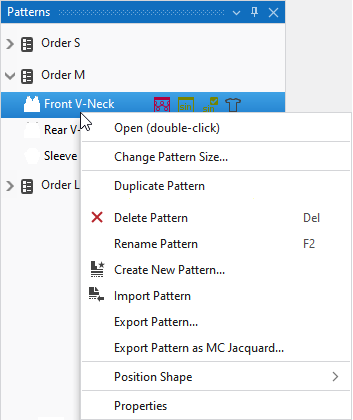

Context menu on the pattern name

Run the following functions in the context menu of the pattern name:

Mostrar la vista de símbolos (doble clic)

Opens the pattern.

Modificar tamaño de muestra...

Opens the Modificar tamaño de muestra dialog box where you can change the height and width of the pattern.

Duplicar muestra...

Opens the Duplicar muestra dialog box.

Eliminar muestra

Deletes the pattern.

Renombrar muestra

Rename the pattern.

Crear nueva muestra...

Create a new pattern.

Importar muestra

Import a pattern from any pattern project.

Exportar muestra...

A new pattern project will be created.

The pattern you clicked will be saved within this new pattern project.

Exportar MC jacquard como muestra...

Save the pattern as MC Jacquard file.

The Nuevo MC Jacquard dialog box will appear.
Make the corresponding settings there.

This selection is only available if the Modo de MC jacquard option is enabled in the Opciones dialog box, Configuración del proyecto tab.

Posicionar corte

Position the shape on pattern.
The available shapes in Cortes appear for selection.

Propiedades

Opens the Propiedades de la muestra window
