Usage of Circle

Draw with or without attributes

• If you selected cursor attributes, they will be applied to the pattern when drawing.
• If you did not select any cursor attributes, the area will be selected.
  The selected area is available for further editing.

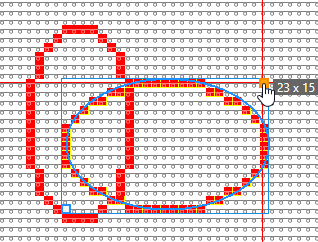

Draw an open, not filled ellipse.

• Select CírculoSin relleno.
• Enter a Grosor de línea value (e.g. 2).
• Set Offset X and Offset Y to 0 (zero).
• Draw the Elipse.(e.g. without attributes).
  Width x height of the ellipse appears in the tooltip.

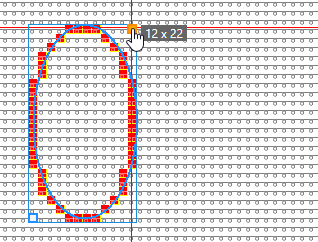

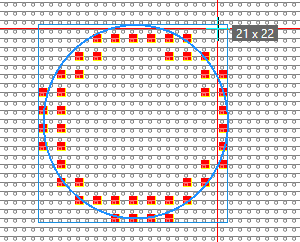

Draw an outlined circle by dot.

• Select CírculoSin relleno.
• Set the Grosor de línea value (e.g. 3).
• Set the value for Offset X (e.g. 1) and Offset Y (e.g. 2).
• Select Círculo or press the SHIFT key when drawing.
• Draw the Círculo (with yarn color red e.g.).
  Width x height of the circle appears in the tooltip.

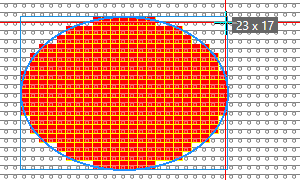

Draw a filled ellipse starting from the center

• Select CírculoRelleno .
• Set the value for Offset X (e.g. 0) and Offset Y (e.g. 0).
• Select Inicio desde el centro.
  Only odd width and height possible.
• Draw the Elipse (with yarn color red e.g.)
• The first mouse click specifies the center of the ellipse.
  Width x height of the ellipse appears in the tooltip.

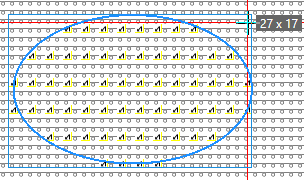

Draw a filled ellipse by dot with modules

• Select CírculoRelleno .
• Set the value for Offset X (e.g. 1) and Offset Y (e.g. 2).
• Select a module (e.g. Pointelle, Stitch v).
• Draw the Elipse.
  Width x height of the ellipse appears in the tooltip.

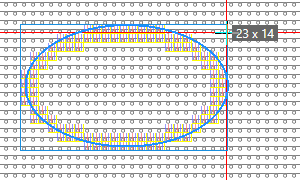

Draw an open, not filled ellipse by the echo mode.

• Select CírculoSin relleno.
• Enter a Grosor de línea value (e.g. 1).
• Set Offset X and Offset Y to 0 (zero).
• Select Dibujar en modo eco .
• Draw the Elipse (with yarn color red e.g.)
  After the second click, the echo with the handles appears.
  You can change or move it.

• Apply the ellipse to the pattern by ENTER.
  A new ellipse appears with handles for moving and changing.
• You can repeat the procedure as often as desired.
