Plating Offset (YPI)


Offset de vanisado (YPI)

Make settings for plating offset.

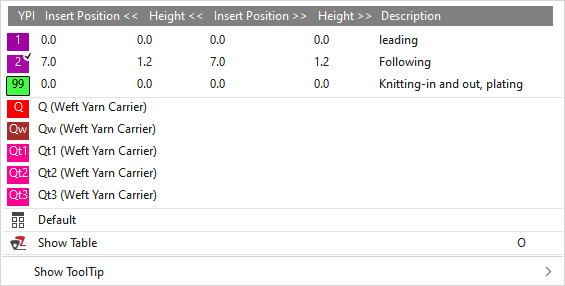

In the context menu you have the following options:

Patterns

Module, CA and MA

to

Select setting of the plating offset.

The entries that were applied to the pattern and entries that are marked in the Parámetros de muestra with Favoritos incluye esta entrada are available.

This selection only applies to ADF machines.

Q (Guiahilos de trama)

Select weft yarn carrier Q.

Only for machines that support this type.

Qw (Guiahilos de trama)

Select weft yarn carrier Qw.

Only for machines that support this type.

Qt1 (guiahilos de trama)

Select weft yarn carrier Qt1.

Only for machines that support this type.

Qt2 (guiahilos de trama)

Select weft yarn carrier Qt2.

Only for machines that support this type.

Qt3 (guiahilos de trama)

Select weft yarn carrierQt3

Estándar

Sets the setting on Estándar.

Applies the entry of the default setting from the header row.

Eliminar

Deletes the entry.

Mostrar en tabla

Opens the plating offset table in the Parámetros de muestra.

There you can select further entries and make settings.

Mostrar información rápida
