General settings (line table)

Reflejar escalonamiento

Creates a symmetrical shape element.
The steppings for the left and right are identical.

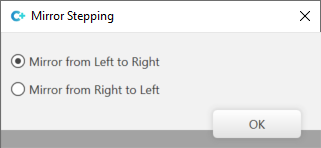

Then, select if the stepping should be mirrored from left to right or from right to left:

If Reflejar escalonamiento is active, Reflejar atributos can be selected.

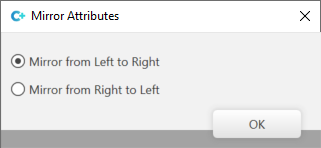

Then you select if the attributes should be mirrored from left to right or from right to left:

Reflejar atributos

Attributes are also mirrored.

Reflejar atributos

Attributes are not mirrored.

Reflejar escalonamiento

Creates an asymmetrical shape element.

The stepping for the left and right are independent of each other.

• Mirror Stepping

Anchor Distance

Shows the X and Y distance of the selected shape element to the corresponding anchor point.

You can edit the Anchor Distance directly here.
The shape element is adjusted accordingly.
When you move the shape element in the shape view, the Anchor Distance is adjusted accordingly.

Izquierda

Show the line properties for the left side.

Derecha

Show the line properties for the right side.

Mostrar todas las propiedades

Show all columns of the table.

Mostrar sub-líneas

Ocultar sub-líneas
