Multi-step Widening

Contenido

Select module for Aumentar en varios pasos.

By drag-and-drop is possible.

Modo

Select the calculation mode.

Cálculo automático de los pasos

Calculate the steps automatically based on the line properties.

Personalizado

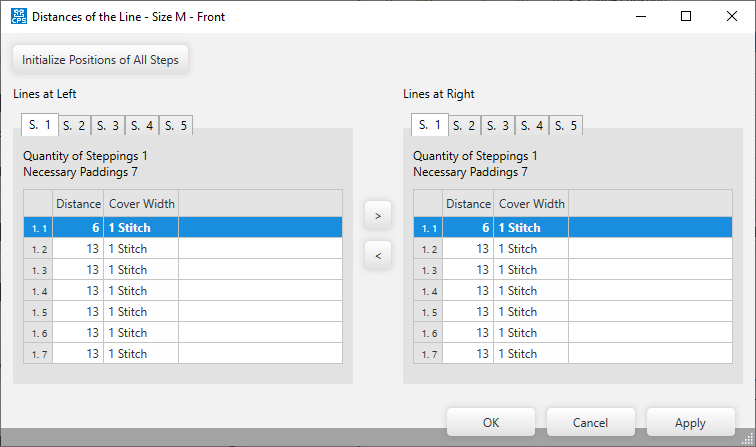

Open the Distancias de la línea dialog box and make settings.

Inicializar posiciones de todos los pasos

Initializes the positions of the steps.
The setting is displayed in the line specifications.

Líneas izquierdas

Settings of the left lines for multi-step narrowing.

Líneas derechas

Settings of the right lines for multi-step narrowing.

S. 1 / S. 2 / S. 3 / S. 4 / S. 5

Select sub-line to View or Edit

Número de pasos

Shows the quantity of steps of the selected sub-line.

Distancias necesarias

Shows the needed distances of the selected sub-line.

First column

Numbering of the entries.

Distancia

Shows the distances between the markings.
Each entry can be edited.

Anchura de superposición

Shows the cover width of each marking.
