Needle Data (Find)

Datos de aguja

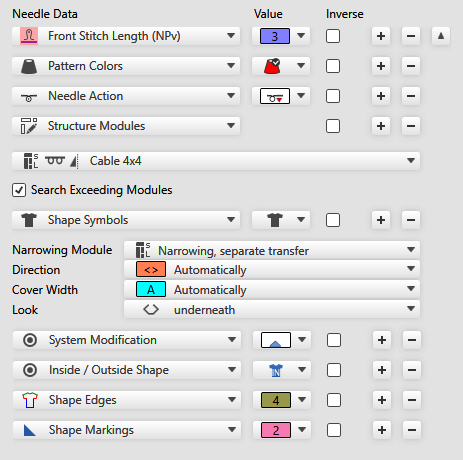

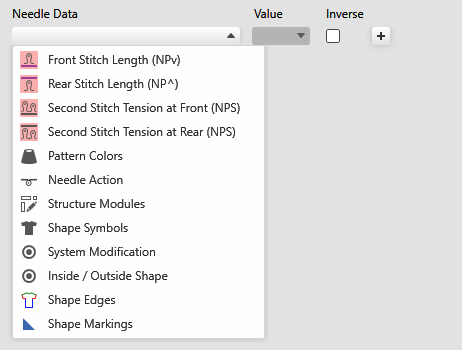

Select the needle data in the drop-down menu that are to be searched.

Depending on the selection different settings options are offered.

Valor

Enter a value that is to be searched.

Inversa

Inverts the selection of the selected data.

Adds an input line for a new search criterion.

You can define various search criteria at the same time.

Deletes the corresponding input line.

Moves the search criterion to the control columns data.

Only possible with stitch length.
The stitch length can be drawn into the control columns and this way works for complete rows.
The stitch length can also be entered needle-exactly into the pattern and as a result it is processed with the corresponding settings with NPJ.

If the stitch length is selected in the control columns data, then the entry is affected in the control column with Find and Replace.
If the stitch length is selected in the needle data, then the needle-exact entry is affected with Find and Replace.

Longitud de malla anterior (NPv)

Longitud de malla posterior (NP^)

Segundo cerraje anterior (NPS)

Segundo cerraje posterior (NPS)

Select the value for the stitch length.
All values in use are offered for selection.

When searching for entries of the stitch length in the search area Needle Data, only needle-exact NP entries are searched for.
Not all control columns are taken into account.

With S-machines it is also possible to search for the second stitch tension.

Colores de muestra

Select the pattern color.
All colors in use are offered for selection.

Acción de la aguja

Select the Acción de la aguja in the drop-down menu.
All needle actions in use are offered for selection.

Módulos de estructura

Select the structure module.

All structure modules that are available in the Módulostool window, are offered for selection.

Buscar módulos seccionados

If modules that were partially overwritten can be found in the pattern, then these modules are taken into account and replaced.

Buscar módulos seccionados

Only complete existent modules are replaced.

This setting does not apply to modules that are cut into by the selection or the shape, but were actually partially overwritten.

Símbolos de forma rasterizada

Select the shape symbol or the module type.

If you select a module type, depending on the selection appear additional menus for Dirección, Anchura de superposición and Aspecto .

Otras acciones de la aguja

Select the symbol for not sinking or devoré.

Dentro / fuera de la forma

Select the symbol for inside or outside shape.

Borde de forma

Select the shape edge.
All shape edges in use are offered for selection.

Marcas de forma

Select the shape marking.
All shape markings in use are offered for selection.
