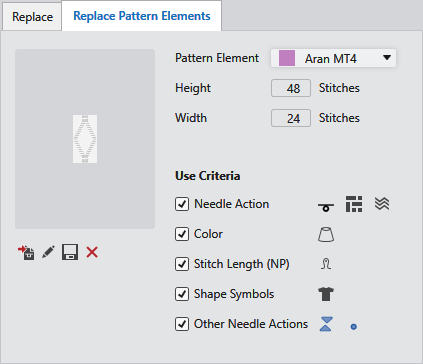

Pattern Elements (Replace / Exchange)

Selección de parte de muestra:

Select the pattern element.

All pattern elements from the Partes de muestra tool window are available for selection in the drop-down list box.

Altura

Displays the height in stitches of the selected pattern element.

Anchura:

Displays the width in stitches of the selected pattern element.

Criterios de inserción

Select the criteria for insert of the pattern element that should be applied.

Acción de la aguja

Insert knitting elements, Jacquards or needle actions of the selected pattern element.

Color

Insert the color of the selected pattern element.

Longitud de malla (NP)

Insert the stitch length of the selected pattern element.

Símbolos de forma

Insert the shape symbols of the selected pattern element.

Otras acciones de la aguja

Insert other needle actions of the selected pattern element.

Create a temporary pattern element from the selection and insert in the criteria for insert.
The pattern element will not be saved to the Partes de muestra tool window.

If you have created a temporary pattern element from a selection and applied the criteria for insert, then in the Selección de parte de muestra: appears Parte de muestra temporal

Open and edit the selected pattern element.

The opened pattern element is only opened temporarily from the criteria for insert and saved there again with the changes.
If this pattern element is applied from the Partes de muestra tool window, then it is not changed there.
If the pattern element was created from a selection in the pattern, then the change has no effect on the original selection.

If you have edited a temporary pattern element, then in the Selección de parte de muestra: appears Parte de muestra editada, temporal

Save the edited pattern element as new pattern element in the Partes de muestra tool window.

Delete the temporary pattern element.
