Options of Start Modules

Verificar automáticamente

Check the structure of the module automatically.

The module is checked automatically for errors during the drawing.
If Verificar automáticamente is switched off, then you have to click manually on Check for Errors.

The menus and the error messages are displayed in the selected language.

• Click on the blue designation of the error message to open the description in the help file.
• Click on the error message, to select the exact position of the error in the module.
  If an eye appears in the error message, then the position is additionally marked with a pin. Click on the eye to hide the pin again.
• If a crossed out eye appears in the error message, then no pin is displayed. Click on the crossed out eye to display the pin.

Verificar

Check the structure of the module manually.

If Verificar automáticamente is deactivated, then the possible error messages appear under the header, as soon as you manually click on Verificar.

Pasadas de diseño::
Columnas de control

Aplicar datos de columnas de control a la pasada de diseño .

If control column data is already defined for the technical rows, then they are applied to the design rows when activating Columnas de control .

If Columnas de control is active, then the control column data is already applied to the design rows when drawing.

Pasadas de diseño::
Selección

Calcular automáticamente los símbolos de diseño en el sector seleccionado.

Aplicar

Apply modifications to the module to the pattern.

Hide and display the tool windows on the right side.

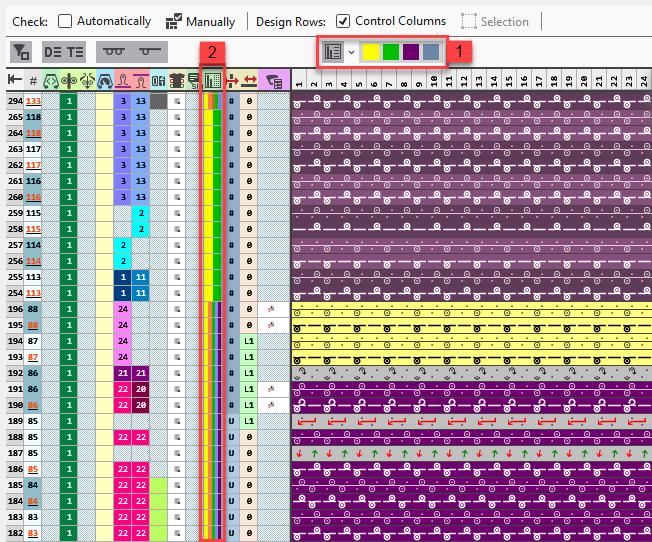

1

Filter of the row markings

Click on the icon to only display the selected filter criteria in the module.
If it is clicked on again, the filter criteria is hidden again and all rows are displayed in the module.

In the selection menu of the icon you select the options for the filter criteria.

This way you can check the different options in the module better for a correct knitting sequence.

2

Control column

In the control column it is easy to recognize which rows correspond to the respective filter criteria due to the colors.
