Parameter Dialog Box

In the Parameter dialog box you make the following settings for the image of the scanned yarn:

The changes to the settings become visible in real time in the following areas:

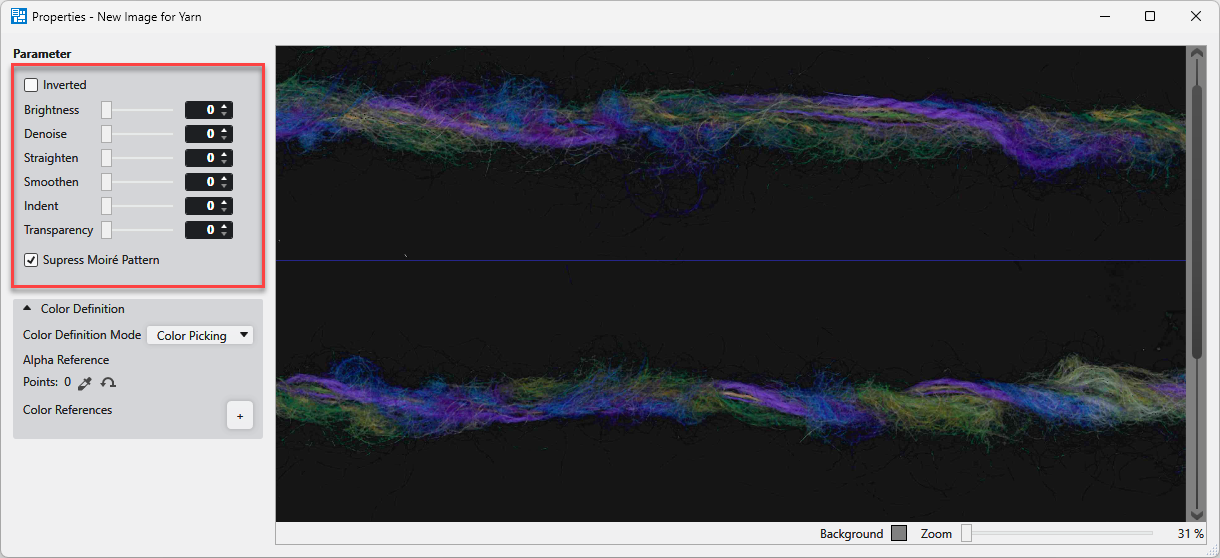

Yarn scan without settings:

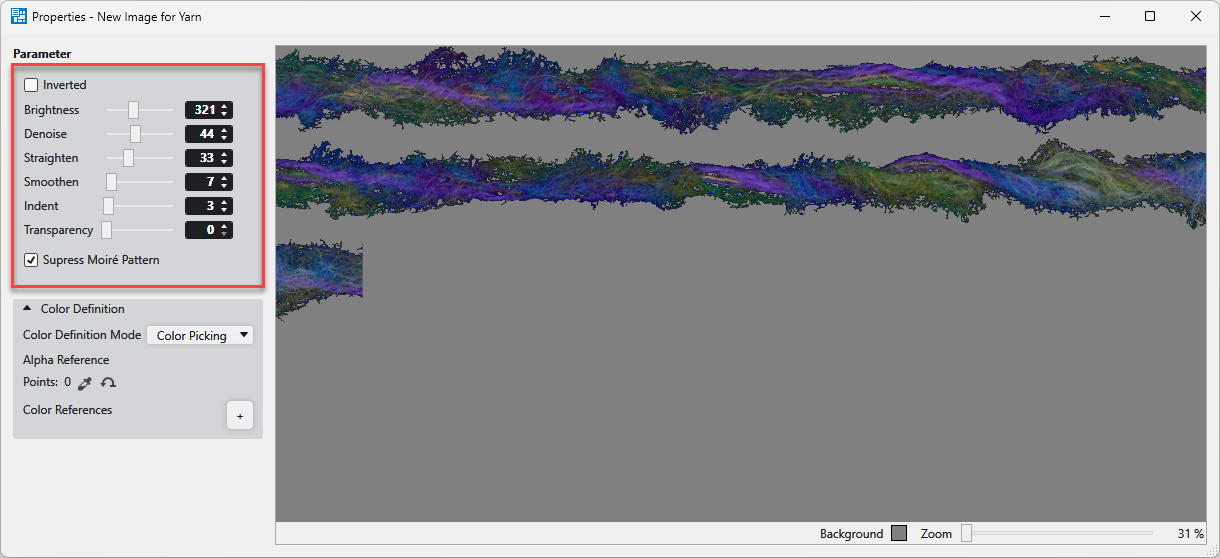

Yarn scan after setting the parameters:

Parámetro

Inverted

Processing yarns on white background with high contrast.

Luminosidad

Make settings for the brightness.

Reducción de ruido

Make settings for the noise suppression.

enderezar

Straighten the view of the yarn.

Alisamiento

Smooth out the thread delimitation of the view.

Sangría

Narrow the thread delimitation of the view.

Suprimir muestra Moiré

In the fabric view, it is possible to get moiré patterns with a low zoom.

Suprimir muestra Moiré reduces this effect in the view of the pattern.

Since it is a visual presentation, it is recommended to simply adjust the parameter until you get the desired view.
Make the settings of the parameters in order from top to bottom if possible and then readjust as necessary.

Definición del color

Three options of the Modo para definición del color:

Elige color

Ajuste Alpha
Select points in the yarn that are suitable for alpha matching.

Referencias de colores
For each color of the yarn, select a reference point that identifies that color.

The quantity of assigned colors corresponds to the colors which will be available in the colorways of the yarn properties.

Rueda des colores

  • You can specify color ranges in the outer ring of the color wheel.
    • Therefore, click the desired position within the outer ring.
    • Examples in the image: (1), (2), (3) + (4)
      With this four color ranges, you can create colorways for 4 colors in the yarn properties.
  • There are colored handles on the outside of this border.
    • With it, you can move the boundaries between the color ranges as desired.
    • As long as you click on a handle, only that color range is displayed in the view.
    • This makes it easy for you to identify and understand the result.
  • The inner circle represents the white area of the yarn.
    • You can pull-up the white area with the separator line as desired.
    • With it, you can expand or reduce the area of the yarn covered by the color white as desired.

Selección de color automática

The color selection is recorded automatically.

Settings in the status bar:

Background

Set the background color.

Zoom

Define the zoom of the view.
