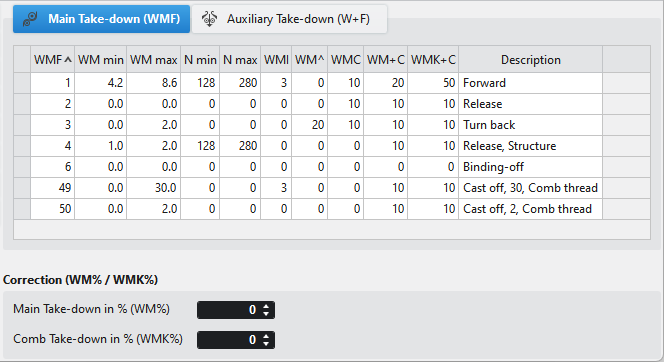

Main Take-down

WMF	Index of the main take-down
WM min.	Fabric take-down value for minimum fabric width Value range: 0 - 31.5 (Useful with Fully Fashion)
WM máx.	Fabric take-down value for maximum fabric width Value range: 0 - 31.5 (Useful with Fully Fashion)
N mín.	Número de agujas para la anchura mínima del tejido (Useful with Fully Fashion)
N máx.	Número de agujas para la anchura máxima del tejido (Useful with Fully Fashion)
WMI	Valor para el impulso de estiraje de tejido: Predeterminado = 3 The fabric take-down impulse causes a pre-tensioning of the take-down in the carriage reversal. The WMI value determines the strength of the pre-tensioning. Value range: 0 - 15
WM^	Número de grados para girar hacia atrás el estirador The brake of the active take-down system (main take-down or comb take-down) is opened for a maximum of 2.5 seconds. The take-down roller or the comb take-down turn back by a maximum number of the indicated degrees (depending on the fabric tension and the fabric take-down value). Value range: CMS 5xx, 7xx, 8xx, ADF: 9-60 degrees CMS 9xx: 9-120 degrees If either of both the conditions is fulfilled, then the brake is closed again. The fabric take-down value (n=0-31.5) becomes active again at the carriage return.
WMC	Valor para la sensibilidad del control de parada del estirador principal: 0= ninguna parada 1= insensible 32= muy sensible Set the speed control of the active take-down system (main take-down or comb take-down) to the value n (0-32). If the take-down system turns too quickly, the machine is stopped. Value range: 0 - 32
WM+C	Número de las pasadas de tisaje para el control del bloqueo del estiraje de tejido: 0 = sin control Monitoring of main take-down. If the take-down has not turned after n (0-100) knitting rows, the machine will stop. Value range: 0 - 100
WMK+C	Número de las pasadas de tisaje para el control del peine: 0 = sin control Monitoring of the comb. If the comb has not moved after n (0-100) knitting rows, the machine will stop. Value range: 0 - 100
Descripción	Nota indicando el uso de esta entrada. Aquí se puede introducir un texto.

Corrección (WM% / WMK%)

Correction data of (pattern name appears)

Estirador principal en % (WM%)
Modify the fabric take-down value by n percent
Estirador de peine en % (WMK%)
Changing the fabric take-down value by n percent while the comb take-down is working. The value is only active till the fabric is taken down by the main take-down.
