New Design Project from Dimensioned Shape

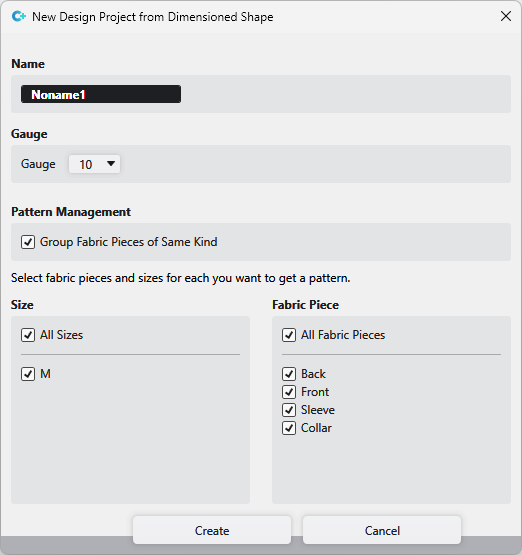

You make the following settings in the Nuevo proyecto de diseño a partir de corte de dimensiones dialog box:

Nombre

Enter a name for the design project.

Galga

Select the gauge for the design project.

Administración de muestras

Agrupar piezas de tisaje similares

Groups are created in the Pattern tool window of the design project and the patterns are allocated to the corresponding groups.
The groups correspond to the basic types that are defined in the properties of the shapes.

Agrupar piezas de tisaje similares

The created patterns are saved in the Pattern tool window without grouping.

Tamaño

Select the sizes of the Dimensioned Shape project, that are to be used to create the design project.

Pieza de tisaje

Select the shapes of the Dimensioned Shape project, that are to be used to create the design project.
