Sections of Statistics

You will find the statistical evaluations of following sections in the dialog box:

The statistical evaluations appear to the right of the setup data and entries from tool windows.

Estiraje

Guiahilos

Velocidad

Conmutador de ciclos

Variador

Prensador

Pasadas

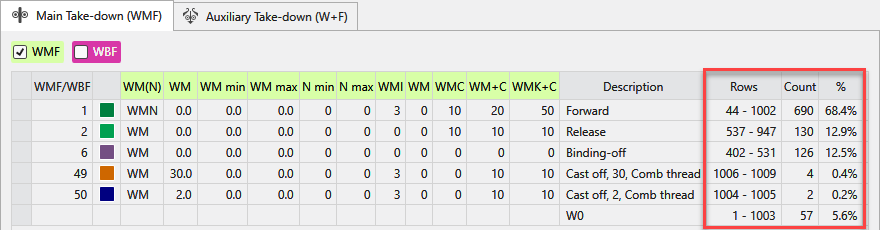

Shows the first row and the last row with this entry.

Cantidad

Shows the quantity of rows with this entry.

Shows the quantity of rows in relation to the whole area.

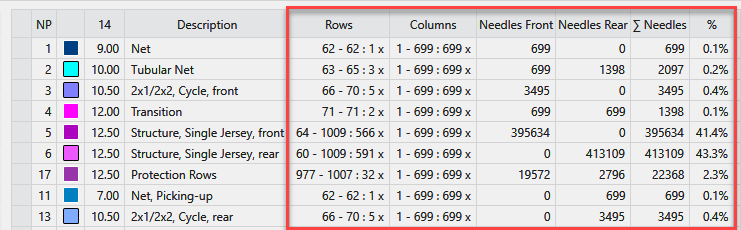

Longitud de malla	Pasadas	Shows the first row and the last row with this entry.
	Columnas	Shows the first column and the last column with this entry.
	Agujas delante	Shows the total quantity of needles of the front needle bed with this entry.
	Agujas atrás	Shows the total quantity of needles of the rear needle bed with this entry.
	∑ Agujas	Shows the total quantity of needles with this entry.
	%	Shows the quantity of needles in relation to the whole area.

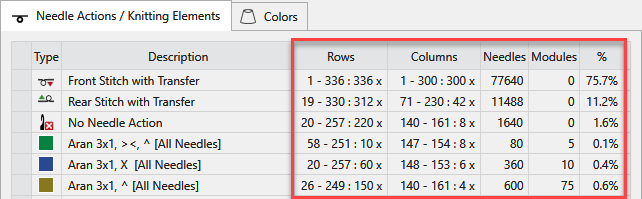

Datos de aguja	Pasadas	Shows the first row and the last row and the quantity of rows with this entry.
	Columnas	Shows the first column and the last column and the quantity of columns with this entry.
	Agujas	Shows the total quantity of needles with this entry.
	Módulos	If this entry concerns modules, the quantity of modules that occur in this area is displayed.
	%	Shows the quantity of needles in relation to the whole area.

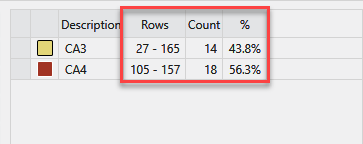

Pasadas

Shows the first row and the last row with this entry.

Cantidad

Shows the quantity of rows with this entry.

Shows the quantity of rows in relation to the area with entries.
