Step by Step to 'Pattern-12A'

  1. The pattern project of pattern ‚Pattern-12‘ is open.
    1
    Select ‚Muster_Pattern_12 in the tool window.
    2
    Open the context menu with RMB and select Duplicar muestra... .
  1. The Duplicar muestra con corte -xxx dialog box appears.
    2. 3
    Rename the pattern.
    4
    Activate Selection ¿También desea generar copias de los cortes?.
  2. The pending shape of ‚Patten-12‘ will be duplicated as well.
    3. 5
    Rename the shape if necessary.
    6
    Close the dialog box with the OK button.
    7
    Select the Cortes tab.
    8
    Select the duplicate of the shape.
    9
    Open the shape by double-clicking.
    10
    In the Tabla de líneas tool window, position the cursor in the area beside the Corte básico button, open the context menu with RMB and call-up Agregar elemento de corte....
    - or -
    Position the cursor in the document window (graphic), open the context menu with the RMB and select Agregar elemento de corte....
    11
    Select Asimétrico in the Tisaje con inserción selection menu.
    12

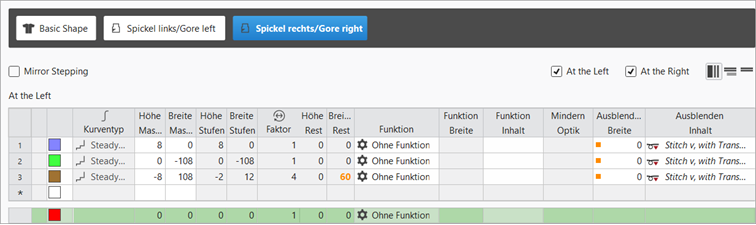

    Open the line table of the new shape element and enter the desired values.
  3. The newly created shape element is displayed in the graphic and in the line table as well.

Shape Element Type: Gore asymmetrical

: Table for the Tisaje con inserción shape element contains values for Izquierda !
However, the shape element is placed on the 'right' side of the fabric piece.

    13
    Select Tisaje con inserción shape element.
    14
    Open the context menu with RMB and select Voltear verticalmente.
    15
    Then open the context menu again -> select Duplicar reflejado.
  1. New knitting element is saved and is displayed in the basic shape.
    2. 16
    To position a Tisaje con inserción shape element, open the input window by double click and enter the coordinates.
    - or –
    Place the shape element at the desired position with the LMB pressed.
    17
    Position both Tisaje con inserción shape elements below the collar.
    : When positioning, pay attention to the knitting technique (carriage direction)!
    18
    Click the Inicio button under Vista previa in the Guiahilos ribbon.
  2. The New Pattern xx document window is opened as view and the Guiahilos ribbon appears.
    3. 19
    Open the dialog box via Mostrar guiahilos.
    20
    If necessary, make the desired settings for allocating yarn carriers.
    21
    Start the Procesamiento técnico:
    Show symbol view after technical processing.
    22
    Generate Sintral.
    23
    Start the Control Sintral.
    24
    Extraer the knitting program.
  1. A program for the knitting machine will be created: CMS530.Pattern-12.zip.
  2. Load knitting program into the machine.

: The extracted file CMS530.Pattern-12A.zip can be loaded onto the machine with an USB stick or via Ethernet.
