Pattern 17: Machines with Presser Feet: Structure with weft yarn (Qs), weft yarn presser foot

Máquina

  • As desired
    • Example for CMS 530 HP W,E7.2 (classification 698)
  • Técnica de tisaje
    • Todas las agujas
  • Elementos de relleno
    • Any yarn color
    • Malla delante con transferencia
  • Comienzo
    • Comienzo, tubular
    • 1 sistema
    • Sin hilo elástico
    • Con hilo de protección
    • Pasada floja

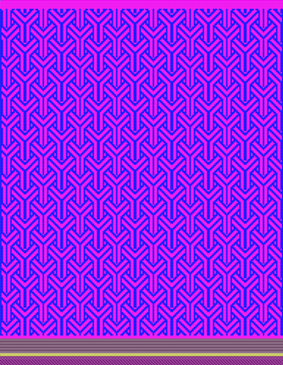

Proyecto de muestra

Pattern-17.spf

Proyecto de corte de líneas

Without shape

  • Color Arrangements with weft yarn, weft yarn presser foot and presser foot corrections for
    • CA#1:
      Structures of single jersey and reverse jersey with weft yarn
    • CA#2:
      SJ with inlay thread

: The weft yarn is inserted by a normal yarn carrier in the system. This weft yarn carrier is called Qs.
  1. Create a pattern project with one pattern.
  2. Draw the design pattern (basic pattern).
  3. Generate Color Arrangements.
  4. Start the Technical Processing.
  5. Generate knitting program.
    Sintral, Jacquard, Setup
  6. Run the Sintral Check.
  7. Load and set up the knitting program on the machine.
