Export Shapes

Exportar cortes

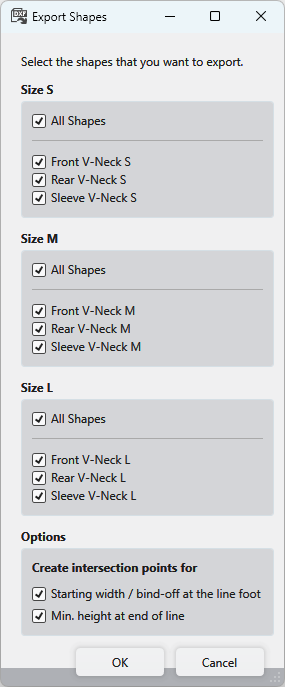

Select the shapes or the sizes that you want to export and confirm the selection.

Opciones

Make the following settings at Opciones / Create intersection points for:

Starting width / bind-off at the line foot

Create a new shape point for the start width of the lines.

Min. height at end of line

Create a new shape point for the minimum height at the end of the lines.

Then, select the folder where the shapes are to be saved and confirm the selection.

The selected shapes are saved as DXF files.
