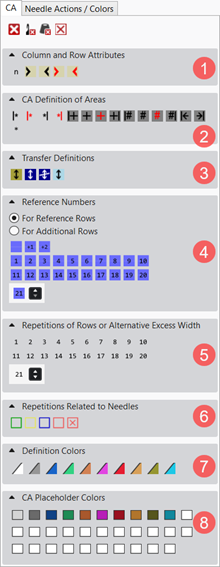

Tools in the Color Arrangement Editor

1

Attributs de colonnes et de rangées

Colonne de référence

Marking of the column for the reference numbers

Colonne pour répétition verticale

For creating repetitions in the height (cycles)

Coonne de zone de coupe gauche

Fabric selvedge in the right of the fabric piece center

: Corresponds to #RM counter.

Coonne de zone de coupe droite

Fabric selvedge in the fabric piece center left

: Corresponds to #LM counter.

Colonne de panneau tricoté gauche

Left outer edge of a fabric piece.

: Corresponds to #L counter.

Colonne de panneau tricoté droite

Right outer edge of a fabric piece.

: Corresponds to #R counter.

2

Définition de la zone CA

Répétition à partir de la colonne de dessin de gauche

Repeat the selected column area within the color relative to the first pattern column.

Répétition vers la droite

Repeat the selected column area starting from the left color field edge.

Répétition à partir de la colonne de dessin de droite

Repeat the selected column area within the color relative to the last pattern column.

Répétition vers la gauche

Repeat the selected column area starting from the right color field edge.

Surlageur, avec écrasement, avec répétition à partir du bord du dessin de gauche

Enter a overwriting additional column on the left relative to the first pattern column of a color area.

Surlageur, avec écrasement

Enter an overwriting additional column on the left and / or right of a color area.

Surlargeur

Do not enter an overwriting additional column on the left and / or right of a color area.

Surlageur, avec écrasement, avec répétition à partir du bord du dessin de droite

Enter a overwriting additional column on the right relative to the last pattern column of a color area.

Effect:
The color area will be widened up to shape edge at max.

Example: Intarsia Binding

Surlageur à la lisière de forme, avec écrasement, avec répétition à partir du bord du dessin de gauche

Enter a overwriting additional column on the left relative to the first pattern column of a color area at the shape edge.

Surlageur à la lisière de forme, avec écrasement

Enter an overwriting additional column on the left and / or right of a color area at the shape edge.

Surlargeur à la lisière de la forme

Do not enter an overwriting additional column on the left and / or right of a color area at the shape edge.

Surlageur à la lisière de forme, avec écrasement, avec répétition à partir du bord du dessin de droite

Enter a overwriting additional column on the right relative to the last pattern column of a color area at the shape edge.

Effect:
The color area will be widened by the indicated column number beyond the shape edge.
Here, Outside shape is set to Within shape.

: Shape edges will not be moved, attributes will be widened.

Bord gauche du tricot

Fading-out at the left fabric selvedge by the drawn-in width .

Bord droit du tricot

Fading-out at the right fabric selvedge by the drawn-in width.

Répétition de rangées

For defining cycles in the column

: If there are to be defined several cycles in the CA, the repeating of rows can be marked visually also with defining colors. For neighboring cycles a defining color is mandatory as it defines the start and the end of the cycle.

En dehors de la forme dans la rangée de recherche

For defining specifications in the needle bed in the area at the left of the #L counter and in the area at the right of the #R counter, also for specifying outside shape.

• Comb Thread Example

3

Valeurs prédéfinies du report

Spécifications pour le report de forme

Specify the pattern rows for transferring the narrowings and widenings

Spécifications pour le report de structure

Specify the pattern rows for transferring the structures.
preferred or delayed

Do not allow structure transferring

Specify the pattern row in which the transferring of the structure is not allowed

Spécifications pour le report auto

Specify the pattern rows for auto transferring

4

Numéro de référence

Pour les rangées de référence

Conserver le numéro de rangées de référence

The previous reference row number is retained, i. e. that the reference row number will not be incremented.

Augmenter le numéro de rangées de référence de 1

Edited reference row number will be increased by 1 for further editing.

: In the first row of the CA, the '+' symbol will not be executed, i.e. it corresponds to an entry of

Augmenter le numéro de rangées de référence de 2

Edited reference row number will be increased by 2 for further editing, i.e. one pattern row is skipped.

to

Reference Row Number from 1 to 20

Selection of the reference row numbers for numbering the reference rows in the design pattern

Selection of further reference row numbers greater than 20

Pour rangées supplémentaires

Retain the number of additional row

The previous reference row number is retained, i. e. that the reference row number will not be incremented.

Increase the number of additional row by 1

Edited reference row number will be increased by 1 for further editing.

Increase the number of additional row by 2

Edited reference row number will be increased by 2 for further editing, i.e. one pattern row is skipped.

to

Number of additional row from 1 to 20

Selection of the additional row number for numbering the additional rows in the Color Arrangement

Selection of further reference additional row numbers greater than 20

5

Répétitions de rangées / Surlargeur alternative

to

Repeating of rows or excess width 1 to 20

Numbers for defining

• Repetition factor with repeating of rows
• Definition of the alternative excess width

Repeating of rows or excess width 21 and higher

6

Répétitions relatives à l'aiguille

Début de la zone

Select areas and define them according to the type of knitting element.

• Binding-off by CA
• Repetitions in a module

Première répétition

Répétition suivante

Supprimer zone

Delete the marked areas

7

Couleurs de définition

to

For visual marking of

• Connecting points
• Repeating of rows (cycles)
• Jacquard colors in the Jacquard module type of knitting element
