Working in the line table or in the document window (graphic)

Working in the line table or document window:

New shape xx [size x] document window is enabled.
The coupe de base is displayed graphically.

1: To create a lined shape based on the displayed rectangle in the ribbon Élaboration de la coupe under Caractéristiques, click the Yableau des lignes button.
- or -
Use the graphic displayed in the document window.

2: Create the desired shape lines.

Example: Lined shape for the structure pattern

Basic Shape: Front

: You may use the method you prefer as both views are always adjusted to each other.

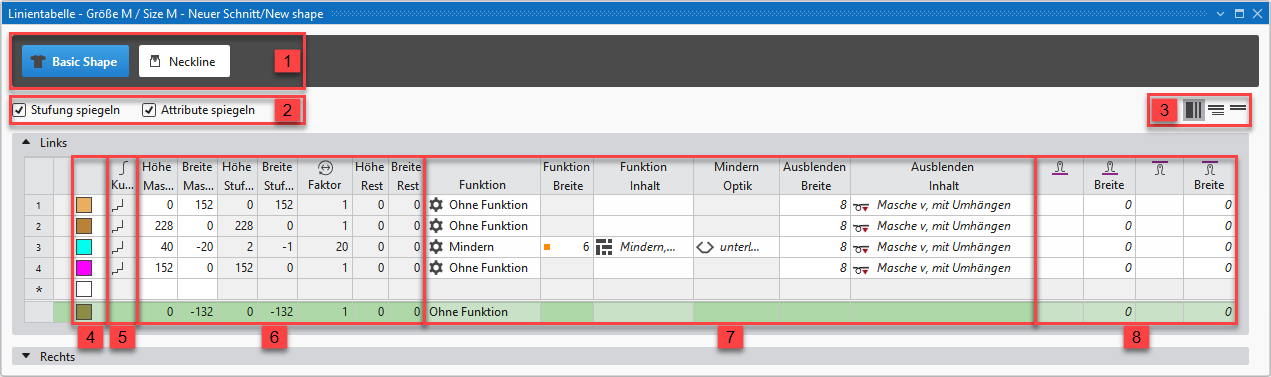

About the Line Table


1	Display of the available shape elements coupe de base (exists always) Adding a new symmetric or asymmetric shape element Encolure Encolure remplie ! Gousset Trou Pince Intérieur de la forme
2		Inverser les escaliers en miroir		Creating a symmetric shape of shape element : The line tables of the left and right are identical.
			Faire une inversion miroir des attributs	Attribute changes carried out in the line table at the left and right.
			Do not mirror attributes	Attribute changes are carried out in the line table at the left or at the right.
		Do not mirror stepping		Creating an asymmetric shape / shape element : The line table can be edited differently at the left and at the right.
3		Afficher toutes les propriétés
		Afficher les sous-lignes
		Masquer les sous-lignes
4	Display color for main lines and sub-lines of a selected line in the Vue de la ligne
5		Courbe		Display of the main line with the selected curve type Modification of the curve type
6	Columns for entering the values for the lines of the lined shape in the input format Stitches: Height of stitches and width of stitches Steps: Height of steps and width of steps : From the entered values and based on the curve type, the value factor, height of rest and width of rest is calculated.
7	Columns for the input of line attributes : The entry in the Function column is automatically determined based on the values for one line.
8	Specification for working with PTS (NPJ) for one line (shape edge) Value for the front and / or rear needle bed Width by Wales

Insert shape line in a shape element:

: The shape lines are inserted symmetrically with both methods by default.

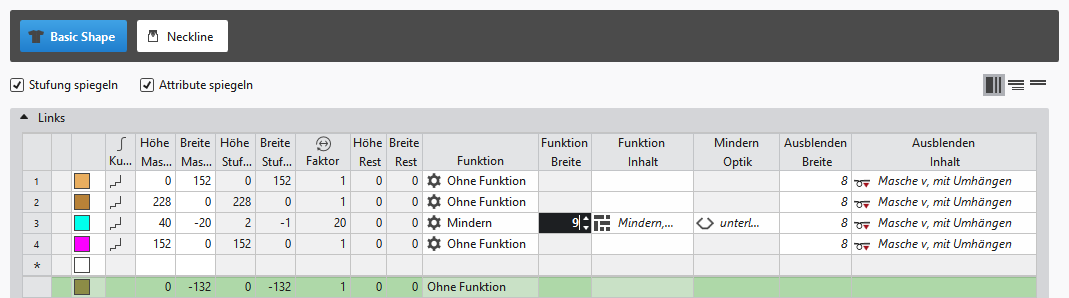

In the Line Table:
Entry of a positive value: Widening and upwards
Entry of a negative value: Narrowing and down

Enter the desired values in the last table line with the * symbol. When confirming the input with the Enter key a new table line is inserted.
Select a row, open the context menu with RMB and select Ajouter une ligne principale.
Select a row, open the context menu with RMB and select Ajouter une ligne avant.
- or -
Select Ajouter une ligne après.

: Only in the line table it is possible to create an asymmetrical line shape by deactivating Mirror stepping.

In document window

Position the cursor on a line of the displayed graphic -> open the context menu with RMB and select -> Insérer la ligne de coupe .

Create New Shape Element:

In the Line Table

Position the cursor in the area next to the coupe de base button, open the context menu by RMB and select Ajouter un nouvel élément de coupe....

In document window

Position the cursor in the document window of the graphic, open the context menu with the RMB and select Ajouter un nouvel élément de coupe....

1: In the selection menu select the desired symmetric / asymmetric shape element.

2: Edit the shape lines of the created shape element the same way as the basic shape.

The newly created shape element is displayed in the graphic and in the line table as well.

Shape Element Type: Neckline symmetric

Positioning of a shape element in the basic shape

:
Every shape element gets a link (anchor) to a shape point in the basic shape during its creation.

A basic shape is created with a shape element for the neckline.

1: Position the cursor in the shape element.

2: Reposition the shape element with the LMB pressed.
- or -
Move the shape with the arrow keys of the keyboard.
- or -
Open the coordinate display in the shape element double-clicking LMB and enter values.
