Modify Markings for Multi-step Widening and Multi-step Narrowing

Modify the markings for multi-step widening and multi-step narrowing:

  1. Shape is created as lined shape.
  2. Shape line with Multi-step Widening or Diminution à plusieurs niveaux allocated underFonction is available.
    1
    Select the shape line with the Multi-step Widening or Diminution à plusieurs niveaux function in the New Shape xx [Size M] document window.
    2
    Open the context menu.
    3
    Select Propriétés des lignes :.
  1. The Propriétés des lignes tool window is opened.
    2. 4
    Press the Distances... button in the Augmentation à escaliers / Diminution à plusieurs niveaux tab.

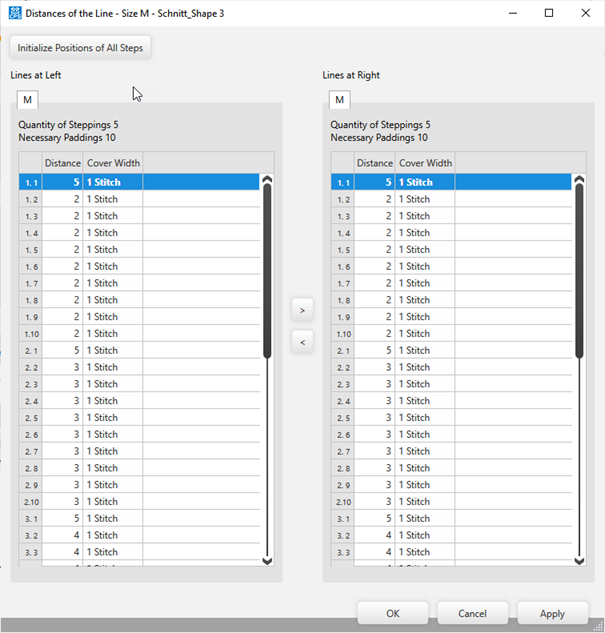

  2. The Distances de la ligne dialog box appears showing each step (Nombre d'escaliers) with the set step width (Distances nécessaires).
    4. 5
    Change the symmetric / asymmetric values of the table.
    6
    Confirm changes by Accepter.
    - or -
    Close the dialog box with OK.
  1. The positions of the symbols for Multi-step Widening appear in the shape.

: You cannot position the symbols for Multi-step Widening or Diminution à plusieurs escaliers manually.
