User Interface

The user interface is based on the new patterning software CREATE PLUS for knitting technicians. This should also facilitate communication and digital data transfer between knit ware designers and knitting technicians.

The scope of functions has been adapted for knit ware designers and is intended to enable simple and intuitive work with the software program.

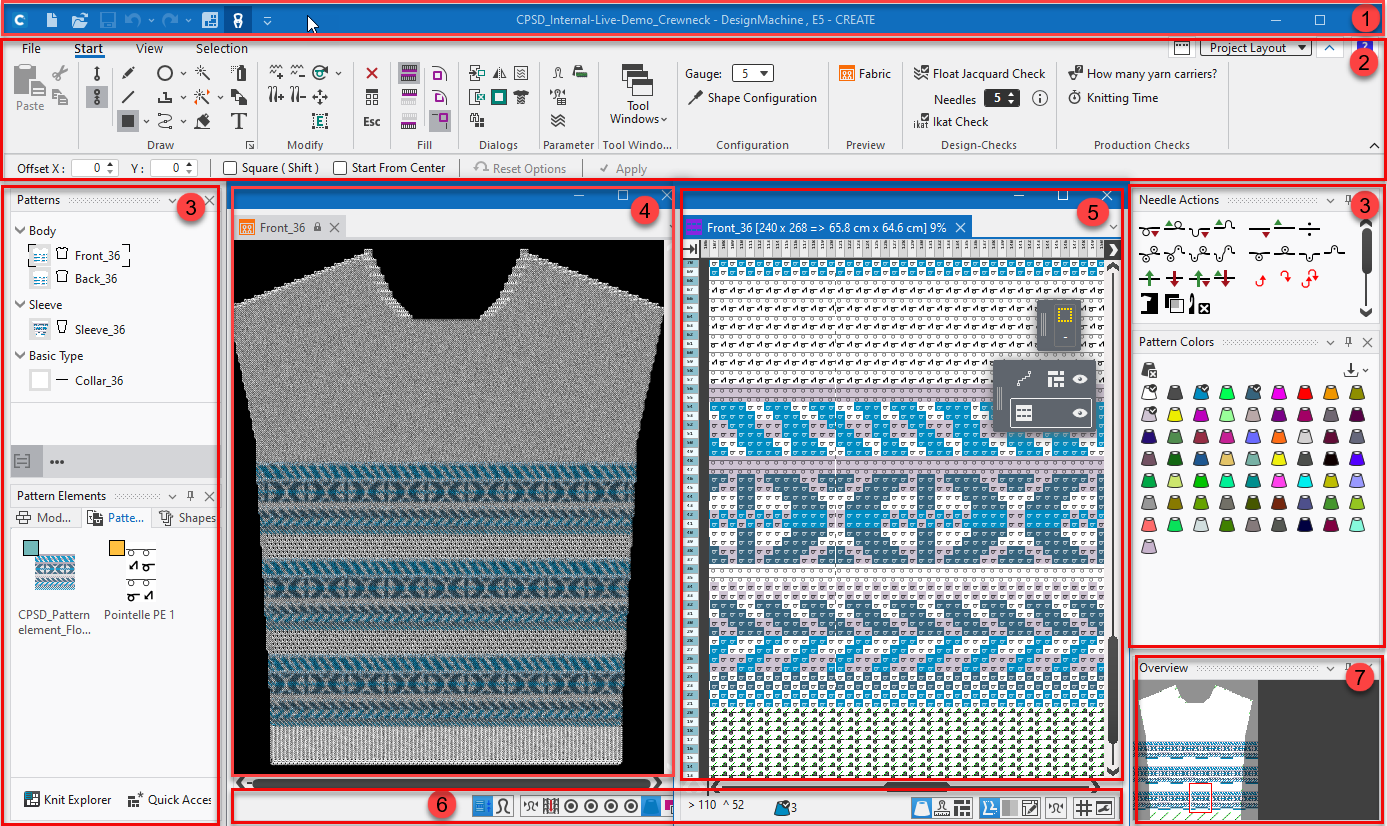

The user interface is essentially divided into several segments:

Designation of the segments

Scope of functions

Shortcut

1 Quick Access Toolbar

Nouveau projet de conception

Ouvrir

Enregistrer

Annuler

Rétablir

Ouvrir le Knit Explorer

Ctrl+N

Ctrl+O

Ctrl+S

Ctrl+Z

Ctrl+Y

F3

2 Ribbons

Containing the necessary groups for editing:

  • Fichier
    Provides access to general functions of the quick access toolbar, but also import functions, support and basic setting options, such as language selection.
  • Accueil
    Provides access to drawing tools, knitting parameters, tool windows, configuration, preview, knitting checks, and the yarn database (Knit Explorer).
  • Affichage
    Allows you to select the desired view.
  • Sélection
    Allows you to select the selection type.

3 Tool Windows

Densité des mailles

Longueur de la maille (NP)

Jacquards

Couleurs de dessin

Actions de l'aiguille

Dessin

Modules

Parties de dessin

Fils

Coupes

Commentaires

Attribution du fil

Combinaisons des couleurs

Vue d'ensemble

4

Fabric View

5

Document Windows

Display and editing of the design pattern

6

Status Bar and Display Options

Information about cursor position, sizes when drawing, colors and needle actions at the cursor position within the design pattern, stitch lengths at front and rear in use

7

Overview

Overview and quick navigation within the document window
