Step by Step to 'Pattern-12A'

  1. The pattern project of pattern ‚Pattern-12‘ is open.
    1
    Select ‚Muster_Pattern_12 in the tool window.
    2
    Open the context menu with RMB and select Dupliquer le dessin... .
  1. The Dupliquer le dessin avec la coupe -xxx dialog box appears.
    2. 3
    Rename the pattern.
    4
    Activate Selection Des copies des coupes doivent-elles être créées ?.
  2. The pending shape of ‚Patten-12‘ will be duplicated as well.
    3. 5
    Rename the shape if necessary.
    6
    Close the dialog box with the OK button.
    7
    Select the Coupes tab.
    8
    Select the duplicate of the shape.
    9
    Open the shape by double-clicking.
    10
    In the Yableau des lignes tool window, position the cursor in the area beside the coupe de base button, open the context menu with RMB and call-up Ajouter un nouvel élément de coupe....
    - or -
    Position the cursor in the document window (graphic), open the context menu with the RMB and select Ajouter un nouvel élément de coupe....
    11
    Select Asymétrique in the Gousset selection menu.
    12

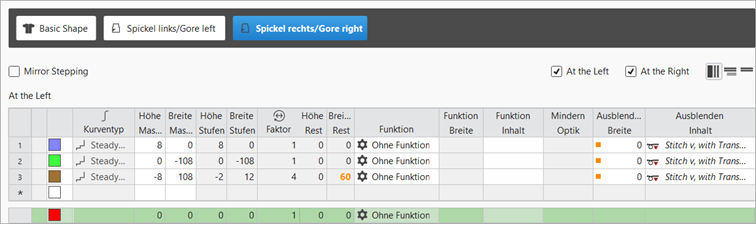

    Open the line table of the new shape element and enter the desired values.
  3. The newly created shape element is displayed in the graphic and in the line table as well.

Shape Element Type: Gore asymmetrical

: Table for the Gousset shape element contains values for Gauche!
However, the shape element is placed on the 'right' side of the fabric piece.

    13
    Select Gousset shape element.
    14
    Open the context menu with RMB and select Retourner verticalement.
    15
    Then open the context menu again -> select Dupliquer en miroir.
  1. New knitting element is saved and is displayed in the basic shape.
    2. 16
    To position a Gousset shape element, open the input window by double click and enter the coordinates.
    - or –
    Place the shape element at the desired position with the LMB pressed.
    17
    Position both Gousset shape elements below the collar.
    : When positioning, pay attention to the knitting technique (carriage direction)!
    18
    Click the Accueil button under Prévisualisation in the Guide-fil ribbon.
  2. The New Pattern xx document window is opened as view and the Guide-fil ribbon appears.
    3. 19
    Open the dialog box via Afficher le guide-fil.
    20
    If necessary, make the desired settings for allocating yarn carriers.
    21
    Start the Élaboration technique:
    Show symbol view after technical processing.
    22
    Generate Sintral.
    23
    Start the Contrôle du Sintral.
    24
    Extraire the knitting program.
  1. A program for the knitting machine will be created: CMS530.Pattern-12.zip.
  2. Load knitting program into the machine.

: The extracted file CMS530.Pattern-12A.zip can be loaded onto the machine with an USB stick or via Ethernet.
