Import MC Setup-Data

Backstage View (Fichier tab) -> Tab Importer -> Importer le Setup

Select the file you want to import.

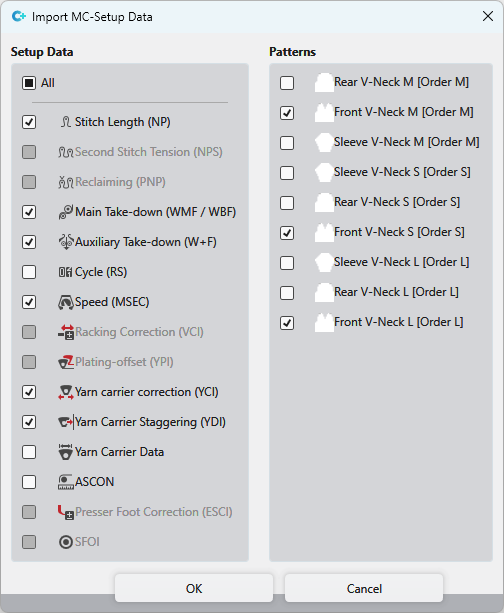

After confirming, the following dialog box appears:

You make the following settings in the Importation du Setup dialog box:

• In the left area, select the pattern parameters you want to import from the selected Setup file.
• In the right area, select the patterns of the active pattern project to which the pattern parameters should be applied.

The entries appear in the pattern parameters, if possible, as sub-rows of the selected patterns.
