Dimensionings of Saddle Shoulder

Overview to the dimensions of the saddle shoulder basic shape type with its variants:

Neckline and Opening	Crew Neck
Seam Position of Collar	Center of Back
Shaped Waist	Shaped Waist
Dimensioning of the Sleeve Length	Inner Sleeve Length

Independent dimensions are shown in black, dependent dimensions in green.

Body and Sleeve

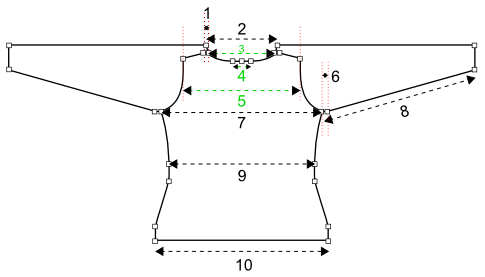

1	Hanging Stitches, Shoulder
2	Neck Width
3	Calculated Neck Width at the Front
4	Cast-off Width at Front Neck
5	Calculated Shoulder Width
6	Without Widening in the Sleeve
7	Chest Width
8	Sleeve Length
9	Waist Width
10	Body Width at the Waistband

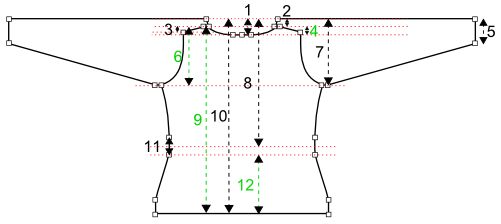

1	Neck Drop at the Front
2	Saddle Width at the Front
3	Shoulder Drop
4	Calculated Neck Drop at the Front
5	Sleeve Width at the Cuff
6	Calculated Armhole Drop of the Body at the Front
7	Upper Sleeve Width
8	Waist Distance
9	Calculated Length at the Front
10	Length
11	Waist Length
12	Waist Height

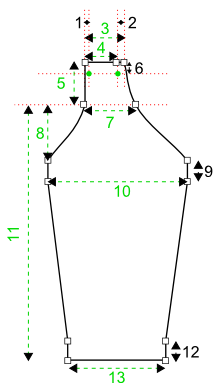

1	Left Saddle Marking
2	Right Saddle Marking
3	Saddle Width at the Neck
4	Saddle Width at the Neck/2
5	Calculated Shoulder Drop
6	Saddle up to the Neck Drop
7	Saddle Width at the Sleeve
8	Armhole Drop of the Sleeve
9	Without Widening in the Sleeve
10	Calculated Upper Sleeve Width
11	Calculated Sleeve Length
12	Cuff Height
13	Calculated Sleeve Width at the Cuff

Collar

1	Collar Width at the Back
2	Collar Width of the Sleeve
3	Collar Width at the Front

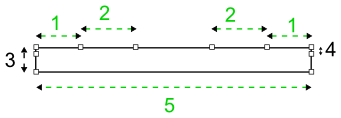

1	Half of Back Collar Width
2	Collar Width of the Sleeve
3	Collar Length
4	Linking Tubular of Collar
5	Collar Width
