Assign the Jacquard Modules to the Jacquard Areas

I. Assign the Jacquard Module:

    1
    Create a row selection via the control column.
    2
    Positioning the cursor in the pattern area.
    3
    Call-up the Selezione / Jacquard… context menu.
  1. The Crea Jacquard [Nuovo disegno] dialog box appears.

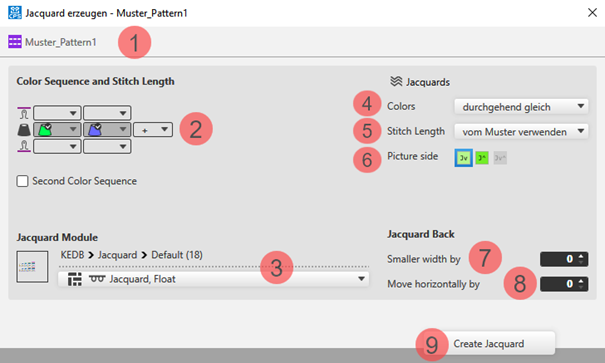

1

Display of the active document window Disegno design, for which the dialog box is valid.

2

Sequenza di colori e lunghezza della maglia

Display or edit box for the stitch length per color / rear system

: Depends on the selection under Lunghezza della maglia ((5)).

Display of the used colors in the selection in the color sequence from the left

Display or edit box for the stitch length per color / front system

: Depends on the selection under Lunghezza della maglia ((5)).

Seconda sequenza di colori

Default Setting
The color sequence is the same as in the first pattern row.

Definition of the color sequence for the second pattern row is possible.

: Input panel for the color sequence of the second pattern row

3

Modulo Jacquard

Displays the selected Jacquard module.

: Position the cursor in the display, to use the LMB to open the Knit Explorer.

Display of the path of the selected directory in the Knit Explorer

Selection list for selecting the desired Jacquard module in the specified directory

Jacquard

4

Colori

Selection list for the knitting sequence of the colors

  • sempre uguale
  • minimo per rango
  • minimo per rango e colonna (ponti filato)

5

Lunghezza della maglia

Selection list for the stitch length

  • Utilizza da disegno
  • Utilizza da modulo
  • Personalizzato
    Make presettings at and / or .

6

Lato del disegno

Selecting the desired face of picture of Jacquard

  • Jv: Lato immagine davanti
  • J^: Lato immagine dietro
  • Jv^: Lato immagine davanti e dietro
    : Not with all Jacquard modules available

Dorso Jacquard

7

Più stretto a sinistra

Specification in case of Jacquard with yarn bridges, by how many needles the back side is to be narrower then the face of picture

8

spostamento orizzontale del punto di taglio

Specification in needles for shifting the Jacquard horizontally

9

Crea Jacquard

The changes made in the dialog box will be applied to the pattern.

    4
    Make the desired presets in the Crea Jacquard [Nuovo disegno] dialog box.
    5
    Apply the presets to the pattern with the Crea Jacquard button.
    6
    Continue:
    Create the next selection for a new Jacquard area.
    - or -
    Exit working in the dialog box by Chiudi.
  1. The different Jacquards are displayed with different symbols in the pattern.

II. Changing the default settings for Block Jacquard:

: A module for net pick-up and net ending are assigned by default to each pattern in the Progetto per disegni for Block Jacquard.

Possibilities for changing the module allocation:
