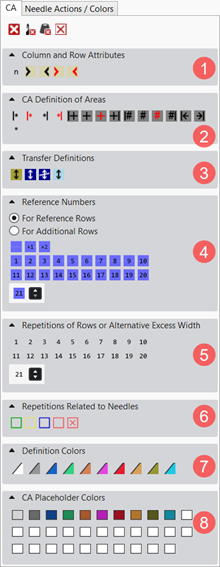

Tools in the Color Arrangement Editor

1

Attributi colonne e ranghi

Colonna di riferimento

Marking of the column for the reference numbers

Colonna per ripetizione verticale

For creating repetitions in the height (cycles)

Colonna dell'area del taglio sulla sinistra

Fabric selvedge in the right of the fabric piece center

: Corresponds to #RM counter.

Colonna dell'area del taglio sulla destra

Fabric selvedge in the fabric piece center left

: Corresponds to #LM counter.

Colonna del telo sulla sinistra

Left outer edge of a fabric piece.

: Corresponds to #L counter.

Colonna del telo sulla destra

Right outer edge of a fabric piece.

: Corresponds to #R counter.

2

Definizione zona CA

Ripetizione a partire dalla colonna sinistra del disegno

Repeat the selected column area within the color relative to the first pattern column.

Ripetizione a destra

Repeat the selected column area starting from the left color field edge.

Ripetizione a partire dalla colonna destra del disegno

Repeat the selected column area within the color relative to the last pattern column.

Ripetizione a sinistra

Repeat the selected column area starting from the right color field edge.

Sovralarghezza con sovrascrittura, con ripetizione a partire dal bordo sinistro del disegno

Enter a overwriting additional column on the left relative to the first pattern column of a color area.

Sovralarghezza, con sovrascrittura

Enter an overwriting additional column on the left and / or right of a color area.

Sovralarghezza

Do not enter an overwriting additional column on the left and / or right of a color area.

Sovralarghezza con sovrascrittura, con ripetizione a partire dal bordo destro del disegno

Enter a overwriting additional column on the right relative to the last pattern column of a color area.

Effect:
The color area will be widened up to shape edge at max.

Example: Intarsia Binding

Sovralarghezza, con sovrascrittura, sulla cimosa della forma con ripetizione a partire dal bordo sinistro del disegno

Enter a overwriting additional column on the left relative to the first pattern column of a color area at the shape edge.

Sovralarghezza sulla cimosa della forma, con sovrascrittura

Enter an overwriting additional column on the left and / or right of a color area at the shape edge.

Sovralarghezza sulla cimosa della forma

Do not enter an overwriting additional column on the left and / or right of a color area at the shape edge.

Sovralarghezza, con sovrascrittura, sulla cimosa della forma con ripetizione a partire dal bordo destro del disegno

Enter a overwriting additional column on the right relative to the last pattern column of a color area at the shape edge.

Effect:
The color area will be widened by the indicated column number beyond the shape edge.
Here, Outside shape is set to Within shape.

: Shape edges will not be moved, attributes will be widened.

Cimosa sinistra del telo

Fading-out at the left fabric selvedge by the drawn-in width .

Cimosa destra del telo

Fading-out at the right fabric selvedge by the drawn-in width.

Ripetizione ranghi

For defining cycles in the column

: If there are to be defined several cycles in the CA, the repeating of rows can be marked visually also with defining colors. For neighboring cycles a defining color is mandatory as it defines the start and the end of the cycle.

Fuori della forma nel rango di ricerca

For defining specifications in the needle bed in the area at the left of the #L counter and in the area at the right of the #R counter, also for specifying outside shape.

• Comb Thread Example

3

Assegnazioni trasporto

Valori predefiniti per trasporto forma

Specify the pattern rows for transferring the narrowings and widenings

Valori predefiniti per trasporto struttura

Specify the pattern rows for transferring the structures.
preferred or delayed

Do not allow structure transferring

Specify the pattern row in which the transferring of the structure is not allowed

Valori predefiniti per trasporto automatico

Specify the pattern rows for auto transferring

4

Numeri di riferimento

Per ranghi di riferimento

Numero rango di riferimento

The previous reference row number is retained, i. e. that the reference row number will not be incremented.

Aumenta numero rango di riferimento di 1

Edited reference row number will be increased by 1 for further editing.

: In the first row of the CA, the '+' symbol will not be executed, i.e. it corresponds to an entry of

Aumenta numero rango di riferimento di 2

Edited reference row number will be increased by 2 for further editing, i.e. one pattern row is skipped.

to

Reference Row Number from 1 to 20

Selection of the reference row numbers for numbering the reference rows in the design pattern

Selection of further reference row numbers greater than 20

Per ranghi supplementari

Retain the number of additional row

The previous reference row number is retained, i. e. that the reference row number will not be incremented.

Increase the number of additional row by 1

Edited reference row number will be increased by 1 for further editing.

Increase the number of additional row by 2

Edited reference row number will be increased by 2 for further editing, i.e. one pattern row is skipped.

to

Number of additional row from 1 to 20

Selection of the additional row number for numbering the additional rows in the Color Arrangement

Selection of further reference additional row numbers greater than 20

5

Ripetizione ranghi o sovralarghezza alternative

to

Repeating of rows or excess width 1 to 20

Numbers for defining

• Repetition factor with repeating of rows
• Definition of the alternative excess width

Repeating of rows or excess width 21 and higher

6

Ripetizioni relative all'ago

Inizio della ripetizione

Select areas and define them according to the type of knitting element.

• Binding-off by CA
• Repetitions in a module

Prima ripetizione

Ripetizione seguente

Elimina occupazione aghi Elimina ripetizione Elimina immagliatura/fine lavorazione

Delete the marked areas

7

Colori di definizione

to

For visual marking of

• Connecting points
• Repeating of rows (cycles)
• Jacquard colors in the Jacquard module type of knitting element
