Structure of a Knitting Element with Tiles
Types of Knitting Elements Having Tiles:
- Modulo Jacquard
- Modulo tecnico
- Modulo tecnico design
- Modulo di diminuzione
- Modulo di diminuzione a più cadute
- Modulo di aumento
- Modulo di aumento a più cadute
- Modulo di rimagliatura
- Inizio
Description of design / structure by the knitting element type Jacquard Module
-
Knitting Element with designation
- Jacquard, Flottante
- Jacquard, Flottante senza trasporto
- Jacquard, Flottante con scarico
- etc.
- Tiles of the knitting element: for each knitting situation of a knitting mode
- for knitting on all needles
- for knitting by 1x1 technique

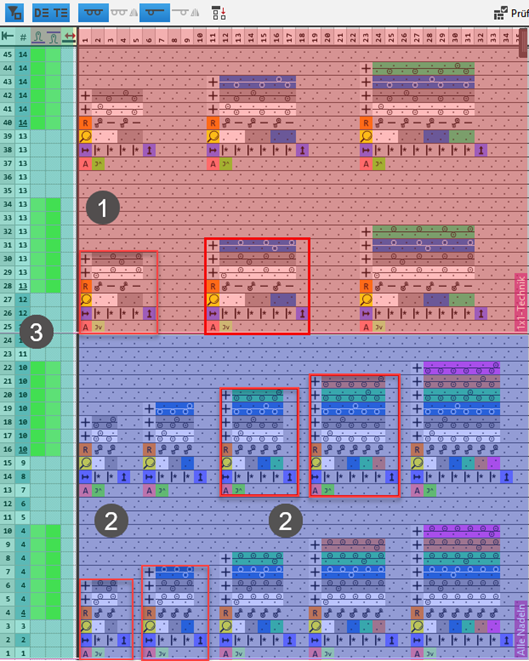

Example for the structure by the Jacquard Stripes knitting element Jac Rigatura
|
| |
|
1 |
Area with all tiles for knitting in 1x1 technique |
|
2 |
Area with all tiles for knitting on all needles |
|
3 |
Control Columns
|
|
Red Framed Areas |
Corresponds to one tile with the knitting information for a specific situation
|
: All control columns are available- Structure of a tile
|
| ||||
|
Search Area | ||||
|
|
Function Column |
Executing Columns |
End Column / Repetition | |
|
Rango attributi |
|
Definition of Attributes to Enter a Tile (search attributes) |
|
|
|
Rango di ripetizione |
|
Definition of Repetitions |
|
|
|
Rango di ricerca |
|
Definition of Search Attributes |
|
|
|
|
|
| ||
|
Processing Area | ||||
|
|
Function Column |
Executing Columns |
End Column / Repetition | |
|
Executing Rows |
Row definition for inserting a tile
|
Knitting information to be inserted, drawn by needle actions with or without definition colors. |
Definition of repeating of rows | |
|
| ||||
:
