Properties of Knitting Elements

The properties define the behavior, the appearance and the size of a knitting element.

Proprietà Dialog Box:

1: Select module.

2: Open the context menu.

3: Select Proprietà.

The Proprietà dialog box will appear.

Example:

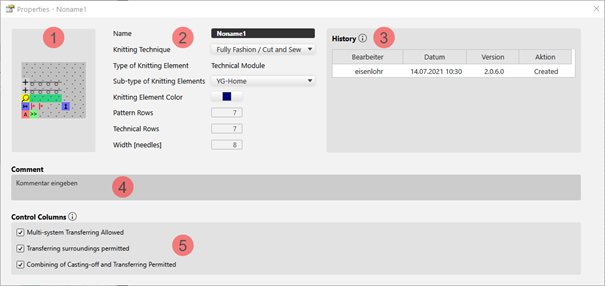

Proprietà dialog box for a technical module


1	Graphic presentation of the selected type of knitting element
2	Nome	Name of the knitting element
	Tecnica di lavoro a maglia	Definition of the knitting technique for the use within the pattern
	Tipo di elemento di lavoro	Display of the selected type of knitting element : As defined when creating. Create New Knitting Elements
	Sottotipo per elementi di lavoro	Selection of sub-types according to the selected knitting element type : Not for all types of knitting element available.
	Colore elemento di lavoro	Definition of a color for the display of the knitting element in the document window with the Colore del modulo setting.
				Display color for the different knitting elements or modules
				Display color for structure modules with the different knitting techniques
	Ranghi di disegno	Quantity of pattern rows in the knitting element
	Ranghi tecnici	Quantity of technical rows in the knitting element
	Larghezza [aghi]	Quantity of needles within one row of the knitting element
3	Cronologia	Display of state of editing from creation until the last modification: Autore Data Versione Azione
4	Commento	Entry of a comment or a description
5	Colonne di comando	Control Column Options Trasporto a più cadute consentito Trasporto ambiente consentito Consentito raggruppamento di scarico e trasporto.
			Options not allowed suppress the corresponding function in the control columns within the area of this knitting element.
			Allowed options enable the corresponding function in the control columns within the area of the knitting element.

4: Make the desired settings.

5: Close the dialog box with .

The properties are applied when using it in the pattern.
