Create Color Arrangements for the pattern example Half Milano with Weft Yarn

Example 1 - 3: Create Color Arrangements for half milano with weft yarn Q and weft yarn presser foot:

Design Pattern is created.

1: Select the desired rows in the Rango control column.

2: Position the cursor in the pattern area.

3: Call up the Selezione / Crea Color Arrangement... context menu.
- or -
Click directly the button in the ribbon.

The Color Arrangement Editor will be opened.

4: Make the desired entries in the editor with the tools for Color Arrangements from the CA and Azioni dell'ago / colori tabs.

5: Therefore, insert one row above each pattern row into the executing area of the Color Arrangement:

6: Draw in the Maglia dietro needle actions with any desired yarn color, magazine color or yarn carrier color.

7: Define this row as an additional row by Numero rango di riferimento.

8: Draw in the needle actions Maglia davanti - Maglia dietro to the existing reference row with the defined plating colors P1, P3 or P5.

9: Make entries to the following control columns:

Caduta di lavoro:

specify the desired system allocation (not mandatory)

Correzione pressa :

Set a different ESCI index for each of both the carriage directions in those technical rows in which the weft yarn presser foot is active.

/ Stitch Lengths

Assign the desired stitch length indexes at front and rear.

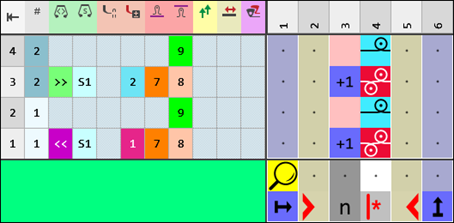

Pattern Example 01

with one weft yarn

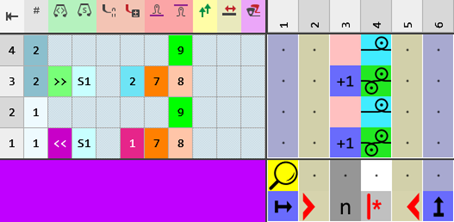

Pattern Example 02

with two weft yarns

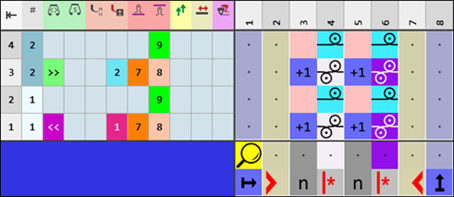

Pattern Example 03

with three weft yarns

10: Check the generated Color Arrangement on correct entries with the Manuale button.
: The knitting procedure cannot be checked!

11: If necessary, in case of a Color Arrangement already used in the design pattern, apply the changes to the basic pattern with the Applica button.
- or -
Close the tool window with .

12: Close the prompt with the desired button:

13: Enter the generated Color Arrangement via the control column into the desired rows of the design pattern.

The Color Arrangement is expanded by the technical processing.

Example 4: Generate a Color Arrangement for half milano with weft yarn Q and weft yarn presser foot:

Design Pattern is created with P7 + P8 plating colors.

1: Select the rows and create the Collor Arrangement.

The Color Arrangement Editor will be opened.

2: Make the desired entries in the editor with the tools for Color Arrangements from the CA and Azioni dell'ago / colori tabs.

3: Therefore, insert one row above each pattern row into the executing area of the Color Arrangement:

4: Draw in the Maglia dietro needle actions with any desired yarn color, magazine color or yarn carrier color.

5: Define this row as an additional row by Numero rango di riferimento.

6: Draw in the needle actions Maglia davanti - Maglia dietro to the existing reference row with the defined plating colors P7 and P8.

7: Make entries to the following control columns:

Caduta di lavoro:

specify the desired system allocation (not mandatory)

Correzione pressa :

Set a different ESCI index for each of both the carriage directions in those technical rows in which the weft yarn presser foot is active.

/ Stitch Lengths

Assign the desired stitch length indexes at front and rear.

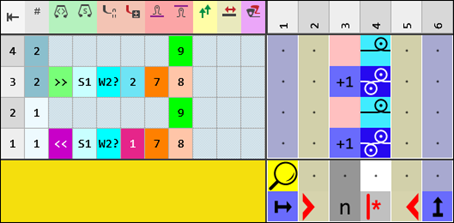

Pattern Example 04

with one weft yarn and inverse plating

1: Check the generated Color Arrangement on correct entries with the Manuale button.
: The knitting procedure cannot be checked!

2: If necessary, in case of a Color Arrangement already used in the design pattern, apply the changes to the basic pattern with the Applica button.
- or -
Close the tool window with .

3: Close the prompt with the desired button:

4: Enter the generated Color Arrangement via the control column into the desired rows of the design pattern.

The Color Arrangement is expanded by the technical processing.
