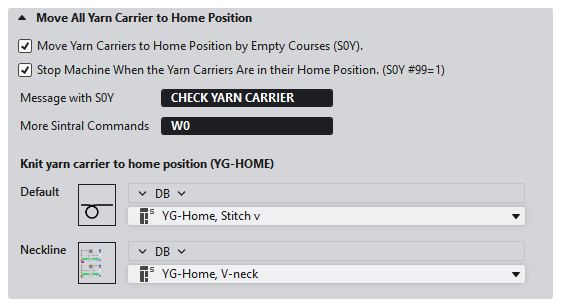

Move All Yarn Carrier to Home Position

Portare con giri a vuoto tutti i guidafili in posizione di base (S0Y)

With the checkbox activated, the yarn carriers are brought into their home position at the start of the pattern.
In the knitting program (Sintral), the S0Y command is entered.
S0Y uses #99 and RS17.

Arrestare la macchina quando i guidafili risultano in posizione di base. (S0Y #99=1)

The machine stops when the yarn carriers are in their home position.
Only available if Portare con giri a vuoto tutti i guidafili in posizione di base (S0Y) is active.
In the knitting program (Sintral), the MS command is entered.
With activated check boxes, S0Y #99=1 is entered in the knitting program.

Messaggio con S0Y

The Text CHECK YARN CARRIER is entered by default. This is applied together with the PRINT command in the knitting program (Sintral) and shown briefly on the machine display.
Entry in the knitting program: PRINT/CHECK YARN CARRIER/

Altri comandi Sintral…

Input field for additional Sintral commands applied while generating the knitting program.

Impostazione predefinita

Select module with which the yarn carriers are knitted into the home position in Default Situations.

By drag-and-drop is possible.

Oltre la scollatura

Select module with which the yarn carriers are knitted into the home position over the neckline.

By drag-and-drop is possible.
