Fabric Pieces (Home of DXF Import)

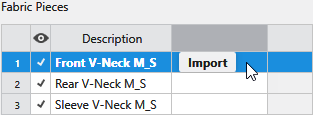

Tool Window Teli

In the Teli tool window can be found all shapes contained in this DXF file.
Using the checkbox in the second column ( ) you select the shapes that are to be displayed.
If you move the mouse to the fourth column, the Importa button appears there.

Click on the Importa button to only import this shape into the pattern.
Make the following settings in the context menu of the entries:

Rinomina	Change the name of the fabric piece.
Allinea all'origine	The fabric piece is positioned in the view area on the x-axis and the y-axis at the zero point.
Elimina telo	The fabric piece is removed and thus also not imported.
