Editing Area of Structure Module

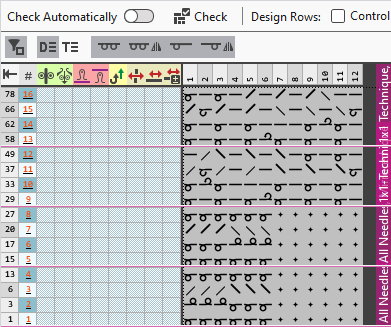

Modules consist of design rows that are entered into the design view and of technical rows that are displayed in the expanded symbol view. Both can be displayed independently.

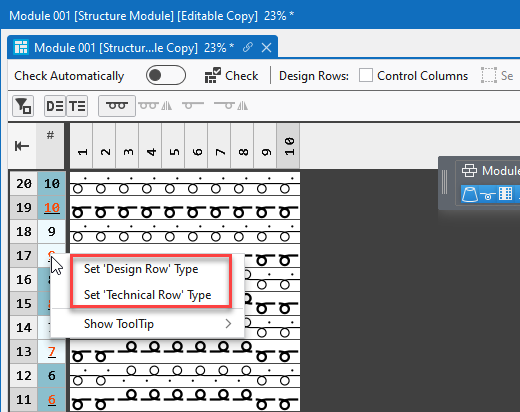

A design row or technical row can be defined in the context menu on the Rango del disegno control column.

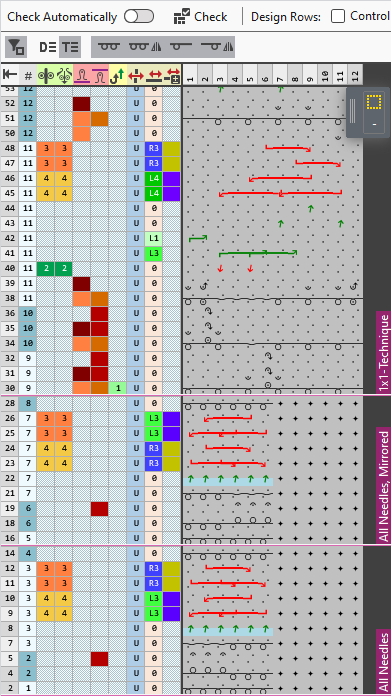

Modules can consist of up to four variants that are entered into the pattern under different conditions and settings.
These variants are:

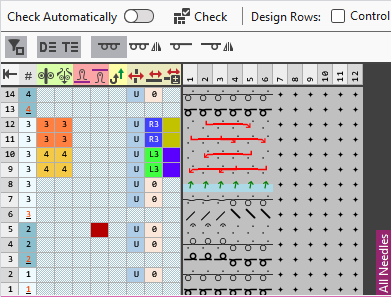

Tutti gli aghi,

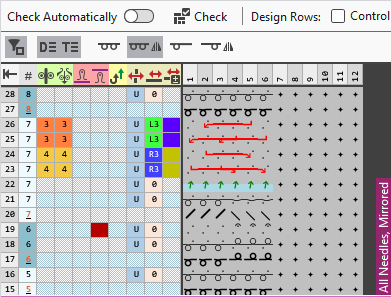

Tutti gli aghi, speculari,

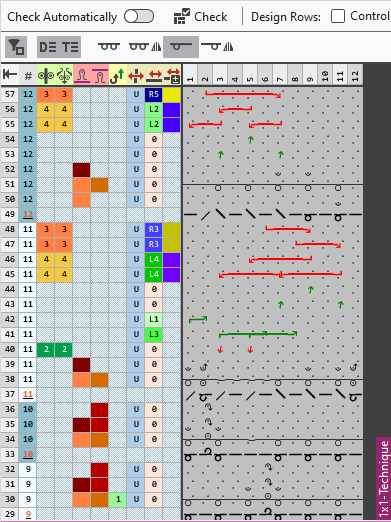

Tecnica 1x1 and

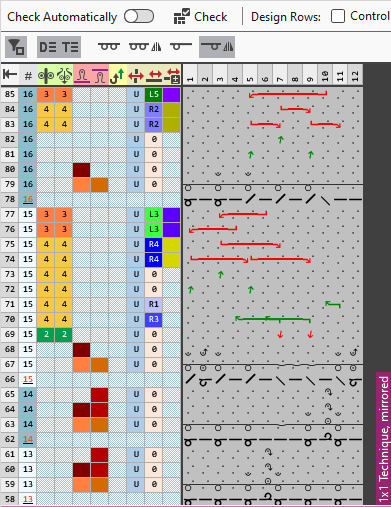

Tecnica 1x1, speculare

You can toggle between the 4 variants individually.
