Step by Step to 'Pattern-12A'

  1. The pattern project of pattern ‚Pattern-12‘ is open.
    1
    Select ‚Muster_Pattern_12 in the tool window.
    2
    Open the context menu with RMB and select Duplica disegno... .
  1. The Duplica disegno con taglio -xxx dialog box appears.
    2. 3
    Rename the pattern.
    4
    Activate Selection Creare anche le copie dei tagli?.
  2. The pending shape of ‚Patten-12‘ will be duplicated as well.
    3. 5
    Rename the shape if necessary.
    6
    Close the dialog box with the OK button.
    7
    Select the Tagli tab.
    8
    Select the duplicate of the shape.
    9
    Open the shape by double-clicking.
    10
    In the Tabella delle linee tool window, position the cursor in the area beside the Taglio base button, open the context menu with RMB and call-up Aggiungi nuovo elemento di taglio....
    - or -
    Position the cursor in the document window (graphic), open the context menu with the RMB and select Aggiungi nuovo elemento di taglio....
    11
    Select Asimmetrico in the Tassello selection menu.
    12
    Open the line table of the new shape element and enter the desired values.
  3. The newly created shape element is displayed in the graphic and in the line table as well.

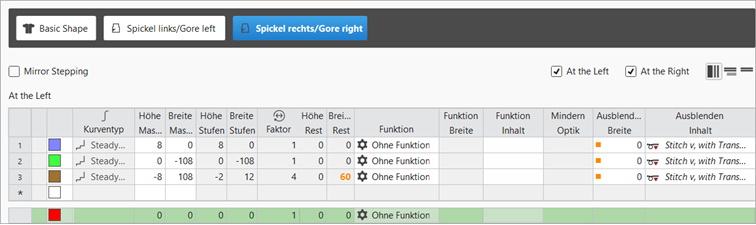

Shape Element Type: Gore asymmetrical

: Table for the Tassello shape element contains values for A sinistra!
However, the shape element is placed on the 'right' side of the fabric piece.

    13
    Select Tassello shape element.
    14
    Open the context menu with RMB and select Capovolgi verticalmente.
    15
    Then open the context menu again -> select Duplica riflesso.
  1. New knitting element is saved and is displayed in the basic shape.
    2. 16
    To position a Tassello shape element, open the input window by double click and enter the coordinates.
    - or –
    Place the shape element at the desired position with the LMB pressed.
    17
    Position both Tassello shape elements below the collar.
    : When positioning, pay attention to the knitting technique (carriage direction)!
    18
    Click the Avvio button under Anteprima in the Guidafili ribbon.
  2. The New Pattern xx document window is opened as view and the Guidafili ribbon appears.
    3. 19
    Open the dialog box via Mostra guidafilo.
    20
    If necessary, make the desired settings for allocating yarn carriers.
    21
    Start the Elaborazione tecnica:

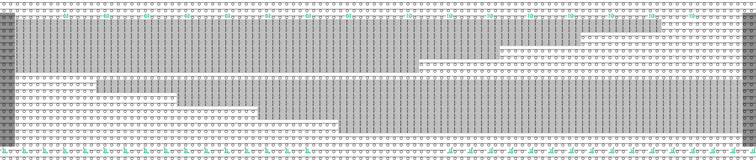

    Show symbol view after technical processing.
    22
    Generate Sintral.
    23
    Start the Controllo Sintral.
    24
    Estrazione the knitting program.
  1. A program for the knitting machine will be created: CMS530.Pattern-12.zip.
  2. Load knitting program into the machine.

: The extracted file CMS530.Pattern-12A.zip can be loaded onto the machine with an USB stick or via Ethernet.
