Pattern 4: Inverse Plating

Macchina

  • As desired
    • Example for ADF 530-32 W, E 7.2 (classification 688)
  • Tecnica di lavoro a maglia
    • Tutti gli aghi
  • Elementi di riempimento
    • any yarn color
    • Maglia davanti con trasporto
  • Inizio
    • Inizio, 1x1
    • 1 sistema
    • Senza filo elastico
    • Con filo di protezione
    • Rango lento

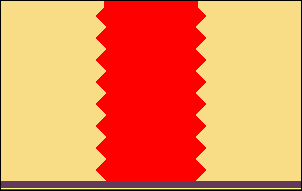

Progetto per disegni

Pattern-4.spf

Progetto per taglio lineare

Without shape
  • Creating Plating Colors for Inverse Plating
    • Inverse Plating between the systems = autarkic shifting of the yarn carriers during knitting
  • 1x1 start modified: Use of the plating color P3
  • Interlock border in 1x1
  1. Create a pattern project with one pattern.
  2. Draw basic pattern.
  3. Create and draw the plating colors into the pattern.
  4. Start the Technical Processing.
  5. Generate knitting program (Sintral, Jacquard, Setup).
  6. Run the Sintral Check.
  7. Load and set up the knitting program on the machine.
