Pattern 16 Selective Weft Yarn with Weft Yarn Presser Foot

Macchina

• As desired
• Example for ADF 530-32 W, E 7.2 (classification 688)

• Tecnica di lavoro a maglia
• Tutti gli aghi
• Elementi di riempimento
• any yarn color
• Maglia davanti con trasporto
• Inizio
• Inizio, 1x1
• 1 sistema
• Senza filo elastico
• Con filo di protezione
• Rango lento

Progetto per disegni

Pattern-16.spf

Progetto per taglio lineare

Without shape

• Color Arrangement for selective inlay of weft yarn
• Border Processing of the Area with Selective Weft Yarn
• 2 variants for knitting-in and out

1. Create a pattern project with one pattern.

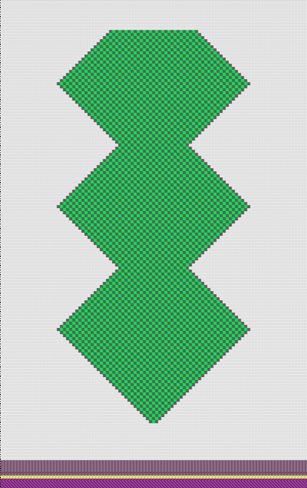

2. Draw basic pattern.
3. Generate Color Arrangements.
4. Border Processing
5. Start the Technical Processing.
6. Generate knitting program (Sintral, Jacquard, Setup).
7. Run the Sintral Check.
8. Load and set up the knitting program on the machine.
