CA tool window

Tool Window CA (Color Arrangements)

Avvio tab -> Finestre degli strumenti -> Color Arrangements

Color Arrangements are knitting elements that can assign different knitting cycles to different color areas in the pattern.
These knitting cycles are inserted in the color areas in the pattern using the technical processing.

Using By drag-and-drop you can also drag a CA from any desired folder from any desired project into the tool window.

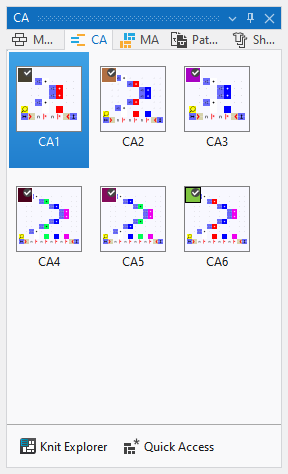

The presentation of the CAs has the following meaning:

Presentation of Knitting Elements

Make the following settings in the CA tool window:

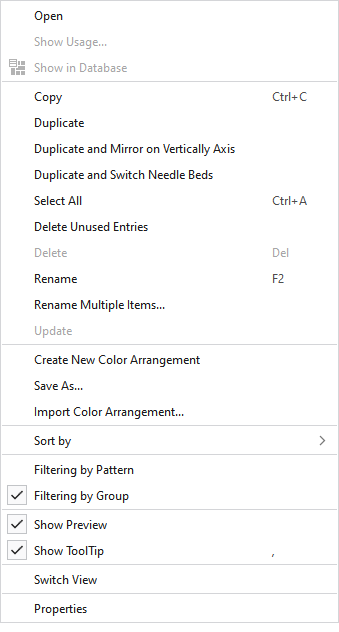

In the context menu on the Color Arrangements:

Apri	Opens the CA.
Mostra utilizzi...	Displays the files of the pattern project where the CA is used.
Mostra nel database	Displays the CA in the Knit Explorer. Knit Explorer
Copia	Copies the CA. Then it can also be inserted in a different pattern project or in the Knit Explorer.
Incolla	Pastes the copied CA. Only possible in the context menu on an empty area beside the CAs.
Duplica	Duplicates the CA. The copy is created within the same folder. For that also see: Duplicate, Mirror and Replace CAs. Pop-up Dialog with Knitting Elements
Duplica e capovolgi verticalmente	Duplicates the CA mirrored on the vertical axis. For that also see: Duplicate, Mirror and Replace CAs. Pop-up Dialog with Knitting Elements
Duplica e scambia fronture	Duplicates the CA with switched needle beds. For that also see: Duplicate, Mirror and Replace CAs. Pop-up Dialog with Knitting Elements
Seleziona tutti	Selects all CAs.
Elimina voci non utilizzate	Deletes all CAs that are not used.
Elimina	Deletes this CA.
Rinomina	Rename this CA.
Rinomina più voci...	Opens the Rinomina più voci dialog box Rename Multiple Items
Aggiorna	Update CA.
Crea nuovo Color Arrangement	Creates a new CA for this pattern project.
Salva con nome…	Saves the CA in any folder.
Importa Color Arrangement...	Imports a CA from any folder.
Ordina per	Sorts the CAs by Nome or Personalizzato.

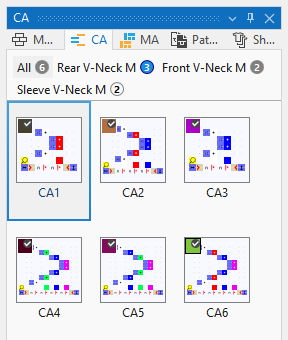

Filtro del disegno	With an active filter, the pattern names of the project appear above the CAs. Active pattern - the quantity of CA appears in blue. Open patterns - the quantity of CA appears in dark gray. Closed patterns - the quantity of CA appears in white. Beside each name appears the quantity of CAs that are contained in the pattern. By clicking on the pattern name only the CAs applied in the pattern are displayed. By clicking on Tutti all CAs of the project are displayed.

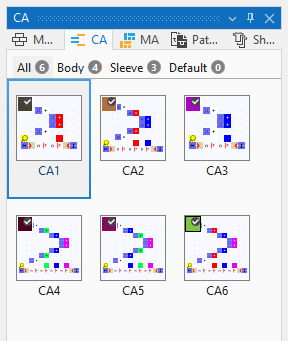

Filtro di gruppo	With an active filter, the groups that are defined in the Disegno tool window appear above the CAs. Beside each group appears the quantity of CAs that are contained in the group. By clicking on the group only the CAs applied in the group are displayed. By clicking on Tutti all CAs of the project are displayed.
Mostra anteprima	In the tooltip on the CA appears the preview of the CA.
Mostra descrizione comandi	In the tooltip on the CA appears the Quickinfo of the CA.
Commuta vista	Switches the view of the CAs between tiles and list.
Proprietà	Opens the Proprietà tool window of the CA. Properties of the CA
