MA tool window

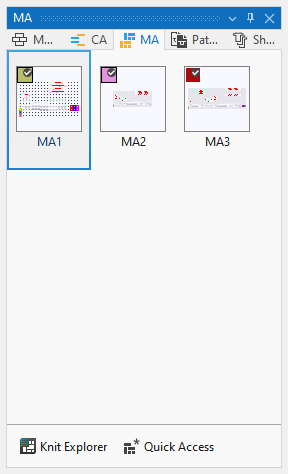

Tool Window MA (Module Arrangement)

Avvio tab -> Finestre degli strumenti -> Module Arrangement

Module Arrangements are knitting elements that can assign a specific sequence to different transfer processes of structure modules in the pattern.
The expansion occurs with technical processing.

Using By drag-and-drop you can also drag a MA from any desired folder from any desired project into the tool window.

The presentation of the MAs has the following meaning:

Presentation of Knitting Elements

Make the following settings in the MA tool window:

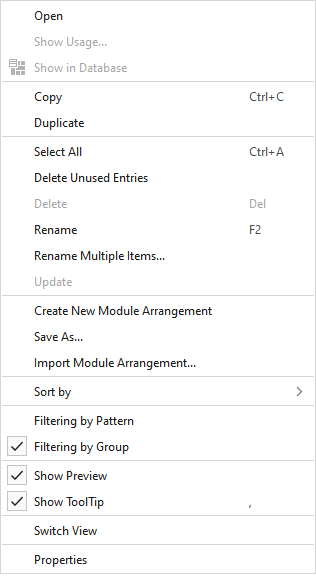

In the context menu on the Module Arrangements:

Apri	Opens the MA.
Mostra utilizzi...	Displays the files of the pattern project where the MA is used.
Mostra nel database	Displays the MA in the Knit Explorer. Knit Explorer
Copia	Copies the MA. Then it can also be inserted in a different pattern project or in the Knit Explorer.
Incolla	Pastes the copied MA. Only possible in the context menu on an empty area beside the MAs.
Duplica	Duplicates the MA. The copy is created within the same folder.
Seleziona tutti	Selects all MAs.
Elimina voci non utilizzate	Deletes all MAs that are not used.
Elimina	Deletes this MA.
Rinomina	Rename this MA.
Rinomina più voci...	Opens the Rinomina più voci dialog box Rename Multiple Items
Aggiorna	Update MA.
Crea nuovo Module Arrangement	Creates a new MA for this pattern project.
Salva con nome…	Saves the MA in any folder.
Importa Module Arrangement...	Imports a MA from any folder.
Ordina per	Sorts the MAs by Nome or Personalizzato.

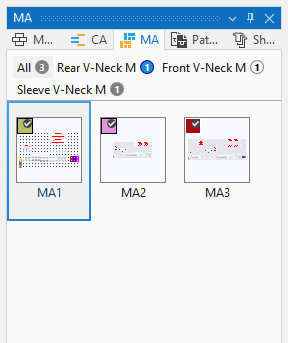

Filtro del disegno	With an active filter, the pattern names of the project appear above the MAs. Active pattern - the quantity of MA appears in blue. Open patterns - the quantity of MA appears in dark gray. Closed patterns - the quantity of MA appears in white. Beside each name appears the quantity of MAs that are contained in the pattern. By clicking on the pattern name only the MAs applied in the pattern are displayed. By clicking on Tutti all MAs of the project are displayed.

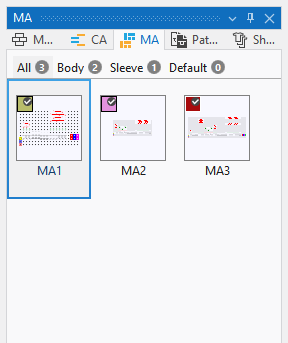

Filtro di gruppo	With an active filter, the groups that are defined in the Disegno tool window appear above the MAs. Beside each group appears the quantity of MAs that are contained in the group. By clicking on the group only the MAs applied in the group are displayed. By clicking on Tutti all MAs of the project are displayed.
Mostra anteprima	In the tooltip on the MA appears the preview of the MA.
Mostra descrizione comandi	In the tooltip on the MA appears the Quickinfo of the MA.
Commuta vista	Switches the view of the MAs between tiles and list.
Proprietà	Opens the Proprietà tool window of the MA. Properties of the MA
