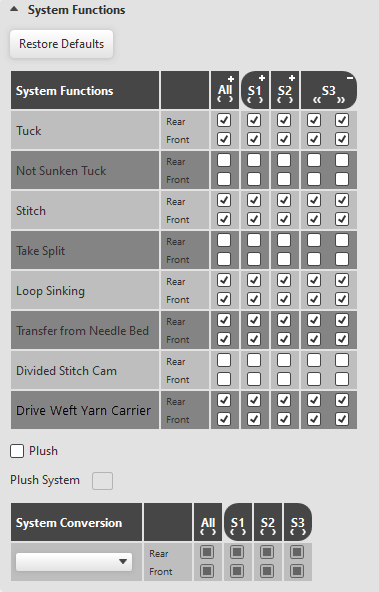

System Functions

Funções do sistema Section

Set the different available functions for every knitting system on every needle bed.

Restaurar valores predefinidos

Resets the settings to the default values.

Funções do sistema

Make settings per system, carriage direction and needle bed for the following selection:

Malha retida

Malha retida não prensada

Malha

Receber Split

Prensar

Entregar desde frontura

Came de formação dividido

Arrastar guia-fios de trama

With machines with additional bed appears the selection:
Entregar à frontura adicional

Todos

Enter settings for all systems
< > in both carriage directions
<< >> separated according to carriage direction

Click on the + to set the presentation to separated according to carriage direction.

Click on the - to set the presentation to in both carriage directions.

S1 – Sx

Settings for the respective system
< > in both carriage directions
<< >> separated according to carriage direction

Felpar

Activate the check box, when the plush technique is to be used to knit.

  • Knitting Technique: Plush

Sistema de felpar:

Shows the systems that can work with plush.

Conversão de sistema

You have these options for a system conversion depending on the selected machine:

Manter abaixo através da função de malha retida

The selection Malha retida is disabled for the converted systems.

Devoré (1 sistema)

  • Devoré Knitting Technique
  • For ADF machines only and only for the rear needle bed
  • System conversion at the machine is necessary.
  • Further settings are necessary in the System Function control column.
  • The following function appears when selecting Devoré:
    • Utilizar sistemas com transformação 'Devoré (1 sistema)' para o tricotagem regular.
    • Systems with Devoré conversion are not recommended for knitting and therefore also disabled by default.
    • Activate this function if you still want to use the converted system for ordinary knitting.
    • Provide a plating color with YPI for the corresponding areas.

Different system functions are disabled automatically for the converted systems.

FlexPly

The FlexPly knitting technique essentially corresponds to the Devoré technique executed on both needle beds in the same system.

  • FlexPly Knitting Technique
  • FlexPly is available for ADF machines of the EKC type and 7.2.
  • A system conversion at the machine is necessary for both needle beds in the same system to use FlexPly.
  • The FlexPly à frente e atrás setting is required in the Função do sistema control column.
    System Function
  • The following function appears with FlexPly selected:
    • Utilizar sistema com transformação 'FlexPly' para o tricotagem regular.
    • It is not recommended to knit in systems with FlexPly conversion and therefore also disabled by default.
    • Activate this function if you still want to use the converted system for ordinary knitting.
    • Provide a plating color with YPI for the corresponding areas.

Systems converted for FlexPly cannot drive yarn carriers into clamping position.

Kit Devoré em um sistema
