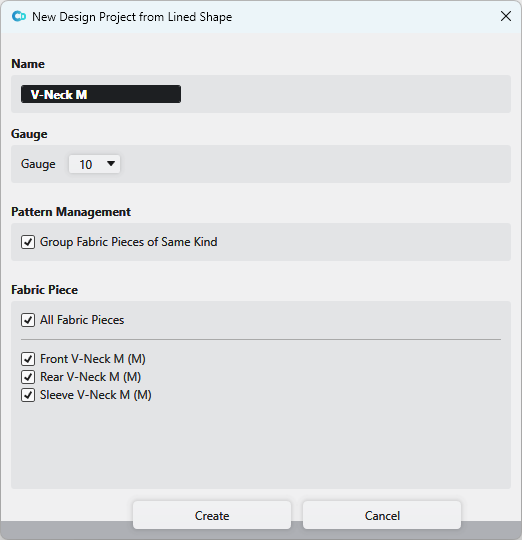

New Design Project from Lined Shape

Make the following settings in the Novo projecto de desenho a partir do corte de linhas dialog box:

Nome

Enter a name for the design project.

Finura

Select the gauge for the design project.

Gestão de amostras

Agrupar peças de tecido similares

Groups are created in the Pattern tool window of the design project and the patterns are allocated to the corresponding groups.
The groups correspond to the basic types that are defined in the properties of the shapes.

Agrupar peças de tecido similares

The created patterns are saved in the Pattern tool window without grouping.

Peça de tecido

Select the shapes of the lined shape project, that are to be used to create the design project.
